C150
GRAPHITE OR PLATINUM CONDUCTIVITY SENSOR

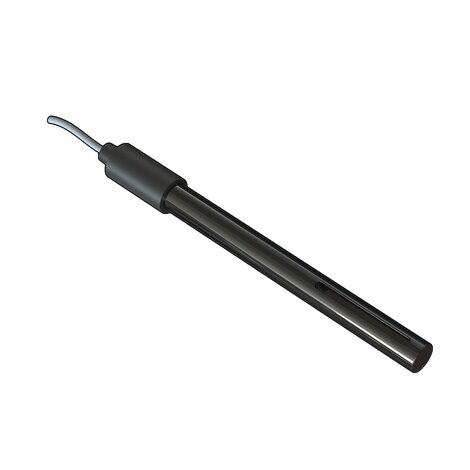

Epoxy Body Conductivity Sensor with Graphite Electrodes with Temperature Sensor (Pt100) included
FLS C150-200
conductivity sensors feature
graphite or high resolution
platinum ring technology.
Durable epoxy body
construction provides rugged
and dependable sensors.
These sensors provide
accurate and high resolution
measurement thanks to the
included temperature sensor
(Pt100) combined with the
ATC (Automatic Temperature
Compensation) function of the
monitor/transmitter. They can
be used for both laboratory
and industrial applications.
Sensor electrodes are well
protected so cell constant can’t
be easily damaged by solids
presence. Three cell constants
are available depending on
the operating range required.
A simple and reusable gland
can be used for economic
electrode in-line mounting
while a ½” or ¾” coupler with
a pipe extension is enough
for submersion mounting. A
specific kit allows to mount
these probes on FLS T fitting
as well as to FLS clamp
saddle.
| Indeks | - | Wymiar | Kategoria produktu | System | product.detail.attribute.Description | product.detail.attribute.Applications/Flow Rate Range | product.detail.attribute.Cell Constant | product.detail.attribute.Connection | product.detail.attribute.Installation | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|
| C150.01TC | - | - | Automatyka | Automatyka | Pt100 included | 0.1 [CS:Simbolo:μ]S/cm to 2000 [CS:Simbolo:μ]S/cm $ (10M[CS:Simbolo:Ω] to 500M[CS:Simbolo:Ω] *cm) | 0,1 | 5 m (16,5 ft.) | EG50P $ EG75P $ MIFV20X05 $ MIMC20X05 | 200 |
| C150.1TC | - | - | Automatyka | Automatyka | Pt100 included | 0.1 [CS:Simbolo:μ]S/cm to 2000 [CS:Simbolo:μ]S/cm | 1,0 | 5 m (16,5 ft.) | EG50P $ EG75P $ MIFV20X05 $ MIMC20X05 $ MK150200 | 200 |
- APPLICATIONS • Chemical concentrations • Foods industry • Steam generation • Metal finishing and mining • Textile industry • Pulp and paper • Water treatment • Reverse osmosis • Softener regeneration • De-ionization • Distillation • Aquaculture • Agriculture and fertilizing systems MAIN FEATURES • Graphite or Platinum measuring surfaces • Suitable for laboratory, industrial or portable applications so long as liquid is filtered • In line and submersion installation • Temperature sensor included • Cell constant choices of 0.1 and 10
