F3.05.XX
Paddlewheel Flow Switch
Paddlewheel Flow Switch

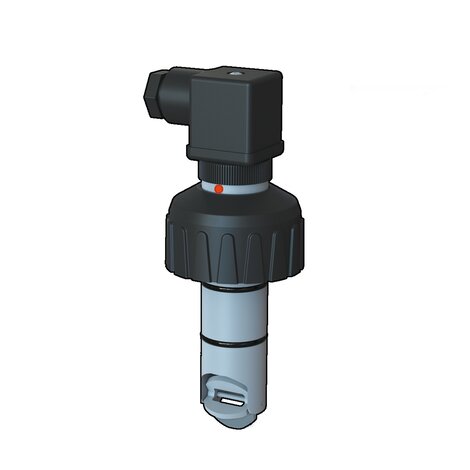

The simple insertion paddlewheel flow switch
type F3.05 is designed to
protect a pump from running
dry or pumping against a
closed valve. lt is equipped
with a mechanical SPST
contact activated when the
flow velocity drops below
the factory preset value of
0.15 m/s (0.5 ft/s). The F3.05
features a LED which shows
the flow status locally.
A specially designed family of
fitting ensures an easy and
quick installation into all pipe
materials in sizes from DN15
to DN600 (0.5” to 24”).
| Indeks | - | Wymiar | Kategoria produktu | System | product.detail.attribute.Version | Napięcie | Długość sensora |
Materiał | product.detail.attribute.Enclosure |
|---|---|---|---|---|---|---|---|---|---|
| F3.05.01 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | C-PVC $ EPDM | IP65 |
| F3.05.02 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | C-PVC $ FKM | IP65 |
| F3.05.03 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | C-PVC $ EPDM | IP65 |
| F3.05.04 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | C-PVC $ FKM | IP65 |
| F3.05.05 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | PVDF $ EPDM | IP65 |
| F3.05.06 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | PVDF $ FKM | IP65 |
| F3.05.07 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | PVDF $ EPDM | IP65 |
| F3.05.08 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | PVDF $ FKM | IP65 |
| F3.05.09 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | 316L SS $ EPDM | IP65 |
| F3.05.10 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | 316L SS $ FKM | IP65 |
| F3.05.11 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | 316L SS $ EPDM | IP65 |
| F3.05.12 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | 316L SS $ FKM | IP65 |
- APPLICATIONS • Pump protection • Filtration systems • Cooling water systems MAIN FEATURES • C-PVC, PVDF, Stainless Steel body • Easy insertion system • High chemical resistance • No-Flow alarm relay output • Highly visible Local Bicolour Status lndicator • Maintenance free • Very low pressure drop
