F3.20.X.01
HIGH PRESSURE PADDLEWHEEL FLOW SENSOR

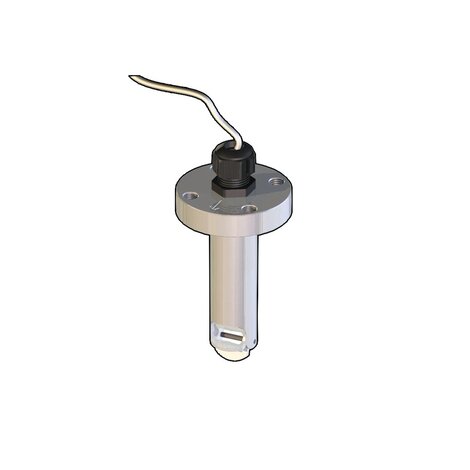

High Pressure Paddlewheel Flow Sensor
FLS F3.20 is a paddlewheel
flow sensor suitable for system
at high pressure and at critical
temperature. F3.20 is designed
for use with every kind of solidfree
liquids in compliance with
chemical compatibilities of
wetted materials. First quality
materials used, as SS for body/
shaft and Halar® for rotor,
grant high mechanical
performances and an
appreciated reliability.
Sensor needs a very limited
maintenance and, in those
cases, it’s easy to perform due
to a 4 screws system and to a
graphite flat gasket.
F3.20 sensor is available for
connection to FLS monitors
and for PLC connection
directly.
SS weld on adapter is
available for sensor installation
on pipe range from 1 ½” to 8”
(DN40 to DN200).
| Indeks | - | Wymiar | Kategoria produktu | System | product.detail.attribute.Version | Napięcie | Długość sensora |
Materiał | product.detail.attribute.Enclosure | product.detail.attribute.Flow Rate Range | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F3.20.H.01 | - | - | Automatyka | Automatyka | Hall | 5- 24 VCC | 107 mm | 316L SS | IP68 | From 0,15 to 8 m/s* | 600 |
| F3.20.P.01 | - | - | Automatyka | Automatyka | Push-Pull | 12 - 24 VCC | 107 mm | 316L SS | IP68 | From 0,15 to 8 m/s* | 600 |
- APPLICATIONS • Heat Exchangers • Reverse osmosis • Cooling systems • HVAC systems (heating, ventilation and air conditioning) • Boiler feedwater MAIN FEATURES • Working range up to 110 bar (1600 PSI)and up to 248°F (120 °C) • Wide operating range (from 0,15 to 8 m/s) • Just one sensor and one fitting for a wide range of pipe dimensions (from 1 ½” to 8”) • High linearity and repeatability • Limited maintanance need and easy execution • Available special version for direct connection to PLC
