F6.30.XX
PADDLEWHEEL FLOW TRANSMITTER

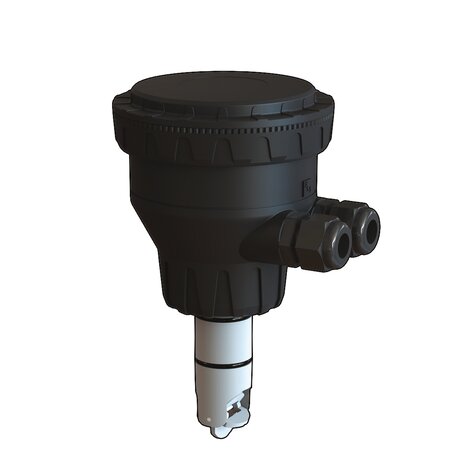

Paddlewheel Flow Transmitter
FLS F6.30 is a
blind transmitter based on
paddlewheel. It can be applied
for the measurement of every
kind of solid-free liquids. The
F6.30 can provides different
output options using a 4-20
mA and a Solid State Relay.
Analog output can be used for
long distance transmission and
SSR can be set as an alarm or
as a volumetric pulse output.
F6.30 Paddlewheel Flow
Transmitter is provided with an
USB interface and a dedicated
software (freely downloadable
from FLS web site) which
allows to easily calibrate
instrument and to intuitively set
outputs by a PC.
The specific design allows an
accurate flow measurement
over a wide dynamic range in
pipe sizes from DN15 (0.5”) to
DN600 (24”).
| Indeks | - | Wymiar | Kategoria produktu | System | product.detail.attribute.Version | Napięcie | Długość sensora |
Materiał | product.detail.attribute.Enclosure | product.detail.attribute.Flow Rate Range | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F6.30.01 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | C-PVC $ EPDM | IP65 | From 0,15 to 8 m/s* | 750 |
| F6.30.02 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | C-PVC $ FKM | IP65 | From 0,15 to 8 m/s* | 750 |
| F6.30.03 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | C-PVC $ EPDM | IP65 | From 0,15 to 8 m/s* | 800 |
| F6.30.04 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | C-PVC $ FKM | IP65 | From 0,15 to 8 m/s* | 800 |
| F6.30.05 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | PVDF $ EPDM | IP65 | From 0,15 to 8 m/s* | 750 |
| F6.30.06 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | PVDF $ FKM | IP65 | From 0,15 to 8 m/s* | 750 |
| F6.30.07 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | PVDF $ EPDM | IP65 | From 0,15 to 8 m/s* | 800 |
| F6.30.08 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | PVDF $ FKM | IP65 | From 0,15 to 8 m/s* | 800 |
| F6.30.09 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | 316L SS $ EPDM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.30.10 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L0 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.30.11 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | 316L SS $ EPDM | IP65 | From 0,15 to 8 m/s* | 1000 |
| F6.30.12 | - | - | Automatyka | Automatyka | Hall | 12 - 24 VCC | L1 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 1000 |
- APPLICATIONS • Industrial water and wastewater treatment • Cooling water systems • Swimming pools • Flow control and monitoring • Water treatment • Water regeneration plant • Processing and manufacturing industry • Water distribution MAIN FEATURES • High chemical resistance • Pipe size range: from DN15 (0,5”) to DN600 (24”) • Low pressure drop • Friendly calibration procedure • 4-20 mA, frequency or volumetric pulse output settable by USB • SSR settable as alarm by laptop
