F6.63.XX

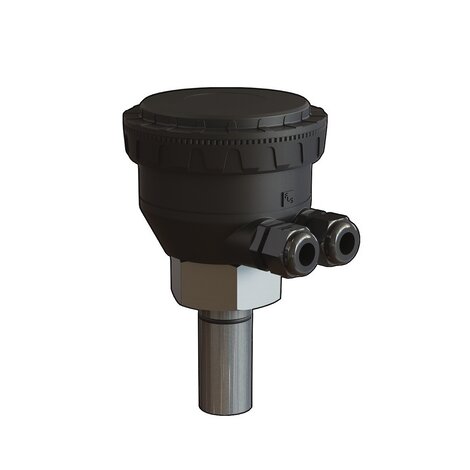

Magmeter Flow Sensor
Magmeter Flow Sensor
The new F6.60 and F6.63 are
flow meters without moving
mechanical parts which can be
applied for the measurement of
dirty liquids so long as they are
conductive and homogeneous.
The F6.60 family can
provide three different
options: frequency output to
be connected to FLS flow
monitors, 4-20 mA output for
long distance transmission
and PLC connection and the
new volume pulse output freely
settable.
The insertion magmeter family
is provided with an USB
interface and a dedicated
software (freely downloadable
from FLS web site) which
allows to easily set by a PC
all parameters according
to specific installation
requirements (as full scale and
cut off).
The specific design allows an
accurate flow measurement
over a wide dynamic range in
pipe sizes from DN15 (0.5”) to
DN600 (24”).
| Indeks | - | Wymiar | Kategoria produktu | System | product.detail.attribute.Version | Napięcie | Długość sensora |
Materiał | product.detail.attribute.Enclosure | product.detail.attribute.Flow Rate Range | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F6.63.09 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L0 | 316L SS $ EPDM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.63.10 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L0 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.63.11 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L1 | 316L SS $ EPDM | IP65 | From 0,15 to 8 m/s* | 1000 |
| F6.63.12 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L1 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 1000 |
| F6.63.33 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L0 | CuNi $ PVDF $ EPDM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.63.34 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L0 | CuNi $ PVDF $ FKM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.63.35 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L1 | CuNi $ PVDF $ EPDM | IP65 | From 0,15 to 8 m/s* | 1000 |
| F6.63.36 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L1 | CuNi $ PVDF $ FKM | IP65 | From 0,15 to 8 m/s* | 1000 |
| F6.63.38 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L0 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 950 |
| F6.63.40 | - | - | Automatyka | Automatyka | Blind | 12 - 24 VCC | L1 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 1000 |
- APPLICATIONS • Water and waste water treatment • Raw water intake • Industrial water distribution • Textile industry • Pools, spas and aquariums • HVAC • Processing and manufacturing industry • Sea water applications MAIN FEATURES • No moving parts, no wear, maintenance free • High mechanical resistance • Accurate measurement of dirty liquids • Pipe size range: from DN15 (0,5”) to DN600 (24”) • Adjustable Flow Rate Range • Low pressure drop • User Settable Operating Parameters • 4-20 mA, frequency or volumetric pulse output • Bi-directional flow measurement selectable (for F6.60) • Special versions for salt-water applications (high concentrations of chlorides like sea water) and for high temperature conditions
