FEOV/LM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

Przepustnica z dźwignią ręczną
FE to przepustnica międzykołnierzowa odcinająca lub regulująca przepływ, zaprojektowana specjalnie do zastosowań wodnych. Dźwignia zaworu wyposażona jest w okienko z wymienną etykietą pozwalającą na opis np. lokalizacji zaworu na instalacji.

product.detail.headline.features:

  • Ergonomic multifunctional handle in HIPVC with the option for quick operation, graduated adjustment in 12 positions (every 7.5°). 180° reversible mounting
  • Customisable Labelling System: integrated module, made of a transparent protection plug customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to the specific needs
  • Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
  • One-piece top flange with PVC-U rack. Drilling according to standard ISO 5211 for direct drive:ÂŁDN 40 Ă· 65: F05ÂŁDN 80 Ă· 150: F07ÂŁDN 200: F10
Wróć do listy produktów

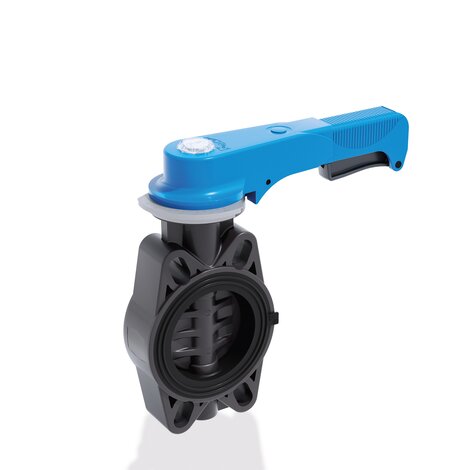

Immagine della valvola a farfalla FEOV/LM DN 65:200 in PVC-U
FEOV/LM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA
Immagine della valvola a farfalla FEOV/LM DN 65:200 in PVC-U
FEOV/LM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

EPDM

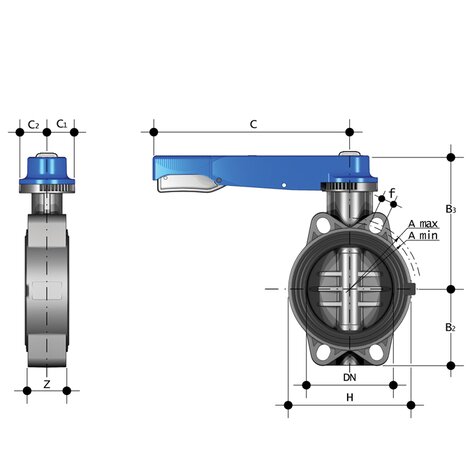

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amin Amax B2 product.detail.attribute.B3 C C1 product.detail.attribute.C[5:2] f H U Z Masa
g/szt.
FEOVLM050E - - System PVC-U System PVC-U PVC-U 50 - 1"1/2 40 16 93,5 109 60 136 175 45 42 19 132 4 33 827
FEOVLM063E - - System PVC-U System PVC-U PVC-U 63 - 2" 50 16 108 124 70 143 175 45 42 19 147 4 43 1012
FEOVLM075E - - System PVC-U System PVC-U PVC-U 75 - 2"1/2 65 10 128 144 80 168 175 45 45 19 165 4 46 1420
FEOVLM090E - - System PVC-U System PVC-U PVC-U 90 - 3" 80 10 145 159 90 182 250 45 45 19 130 4 49 1640
FEOVLM110E - - System PVC-U System PVC-U PVC-U 110 - 4" 100 10 165 190 105 196 250 45 45 19 150 4 56 1990
FEOVLM140E - - System PVC-U System PVC-U PVC-U *140 - 5" 125 10 204 215 121 215 335 45 45 23 185 4 64 3030
FEOVLM160E - - System PVC-U System PVC-U PVC-U 160 - 6" 150 10 230 242 132 229 335 45 45 23 210 4 70 3730
FEOVLM225E - - System PVC-U System PVC-U PVC-U **225 - 8" 200 10 280 298 161 309 425 65 82 23 325 8 71 8240

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amin Amax B2 product.detail.attribute.B3 C C1 product.detail.attribute.C[5:2] f H U Z Masa
g/szt.
FEOVLM050F - - System PVC-U System PVC-U PVC-U 50 - 1"1/2 40 16 93,5 109 60 136 175 45 42 19 132 4 33 827
FEOVLM063F - - System PVC-U System PVC-U PVC-U 63 - 2" 50 16 108 124 70 143 175 45 42 19 147 4 43 1012
FEOVLM075F - - System PVC-U System PVC-U PVC-U 75 - 2"1/2 65 10 128 144 80 168 175 45 45 19 165 4 46 1420
FEOVLM090F - - System PVC-U System PVC-U PVC-U 90 - 3" 80 10 145 159 90 182 250 45 45 19 130 4 49 1640
FEOVLM110F - - System PVC-U System PVC-U PVC-U 110 - 4" 100 10 165 190 105 196 250 45 45 19 150 4 56 1990
FEOVLM140F - - System PVC-U System PVC-U PVC-U *140 - 5" 125 10 204 215 121 215 335 45 45 23 185 4 64 3030
FEOVLM160F - - System PVC-U System PVC-U PVC-U 160 - 6" 150 10 230 242 132 229 335 45 45 23 210 4 70 3730
FEOVLM225F - - System PVC-U System PVC-U PVC-U **225 - 8" 200 10 280 298 161 309 425 65 82 23 325 8 71 8240
  • Disk in PVC-U with through shaft
  • Zinc plated square section steel stem completely isolated from the fluid complying with standard ISO 5211: DN 40 Ă· 65: 11 mm DN 80 Ă· 100: 14 mm DN 125 Ă· 150: 17 mm DN 200: 22 mm
  • Can also be installed as a bottom discharge valve or tank dump valve
  • Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
  • Possibility of directly installing a gearbox or pneumatic and/or electric actuators with a standard drilling pattern according to standard ISO 5211 F05, F07, F10
