FKOM/FM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

Przepustnica z odkrytym czpieniem
FK to przepustnica międzykołnierzowa do odcinania lub regulacji przepływu. Charakterystyka konstrukcyjna czyni ją idealną do zastosowań przemysłowych wymagających wysokiej wydajności i długotrwałej niezawodności. Dźwignia zaworu wyposażona jest w okienko z wymienną etykietą pozwalającą na opis np. lokalizacji zaworu na instalacji.

product.detail.headline.features:

  • Ergonomic handle in HIPVC equipped with locking and unlocking device, release, quick operation and graduated adjustment in 10 intermediate positions (DN 40Ă·200). The operating range, starting from the first few degrees of valve opening, also guarantees extremely low pressure drops.
  • Customisable Labelling System: integrated module in the handle, made of a transparent protection plug and a customisable tag holder using the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs.
  • STAINLESS steel square section stem completely isolated from the fluid complying with standard ISO 5211: DN 40Ă·65: 11 mm DN 80Ă·100: 14 mm DN 125Ă·150: 17 mm DN 200: 22 mm DN 250Ă·400: 27 mm
  • Body in polypropylene based compound reinforced with fibreglass (PP-GR) resistant to UV rays and characterised by high mechanical strength.
  • Drilling pattern using oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40Ă·200 guarantee the correct axial alignment of the valve during installation. For DN 250Ă·400 valves, the drilling pattern for the selfcentring system is of the traditional type according to DIN and ANSI standards.
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
Wróć do listy produktów

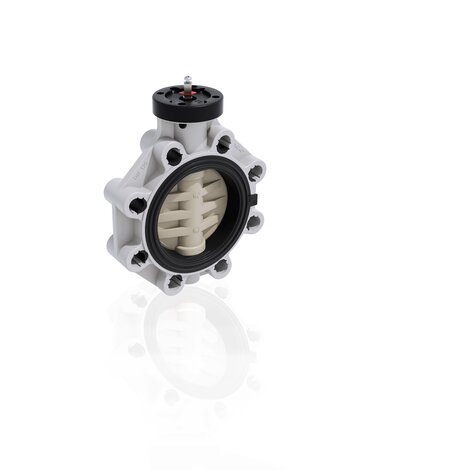

Valvola a farfalla FKOM/FM DN 80:200 in PP-H
FKOM/FM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA
Valvola a farfalla FKOM/FM DN 80:200 in PP-H
FKOM/FM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

EPDM

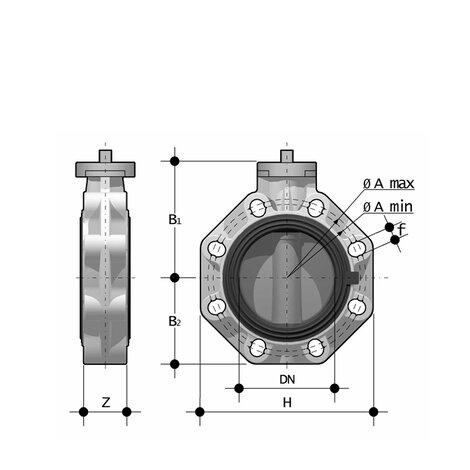

Indeks - Wymiar Kategoria produktu System Materiał product.detail.attribute.d - Size DN PN Amin Amax product.detail.attribute.øA B1 B2 f H U Z Masa
g/szt.
FKOMFM050E - - System PP-H System PP-H PP-H 50 - 1"1/2 40 10 99 109 - 106 60 19 132 4 33 474
FKOAMFM814E - - System PP-H System PP-H PP-H 14" ***350 7 - - 476 330 280 28,5 530 12 129 23315
FKOAMFM812E - - System PP-H System PP-H PP-H 12" ***300 8 - - 432 305 245 25,4 475 12 114 18700
FKOAMFM810E - - System PP-H System PP-H PP-H 10" ***250 10 - - 362 248 210 25,4 405 12 114 11800
FKOMFM400E - - System PP-H System PP-H PP-H 400* **400 6 - - 515 350 306 26 594 16 169 30310
FKOMFM355E - - System PP-H System PP-H PP-H 355* **350 7 - - 460 330 280 22 530 16 129 23315
FKOMFM315E - - System PP-H System PP-H PP-H 315* **300 8 - - 400 305 245 22 475 12 114 18700
FKOMFM280E - - System PP-H System PP-H PP-H 250*/280* **250 10 - - 350 248 210 22 405 12 114 11800
FKOMFM225E - - System PP-H System PP-H PP-H 200*/225* - 8" 200 10 280 298 - 227 161 23 323 8 71 5900
FKOMFM160E - - System PP-H System PP-H PP-H 160*/180 - 6" 150 10 230 242 - 180 134 23 268 8 70 3200
FKOMFM140E - - System PP-H System PP-H PP-H 125/140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2450
FKOMFM110E - - System PP-H System PP-H PP-H 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1650
FKOMFM090E - - System PP-H System PP-H PP-H 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1300
FKOMFM075E - - System PP-H System PP-H PP-H 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 900
FKOMFM063E - - System PP-H System PP-H PP-H 63 - 2" 50 10 115 126 - 112 70 19 147 4 43 654
FKOAMFM816E - - System PP-H System PP-H PP-H 16" ***400 6 - - 540 350 306 28,5 594 16 169 30310

FKM

Indeks - Wymiar Kategoria produktu System Materiał product.detail.attribute.d - Size DN PN Amin Amax product.detail.attribute.øA B1 B2 f H U Z Masa
g/szt.
FKOMFM050F - - System PP-H System PP-H PP-H 50 - 1"1/2 40 10 99 109 - 106 60 19 132 4 33 474
FKOAMFM814F - - System PP-H System PP-H PP-H 14" ***350 7 - - 476 330 280 28,5 530 12 129 23315
FKOAMFM812F - - System PP-H System PP-H PP-H 12" ***300 8 - - 432 305 245 25,4 475 12 114 18700
FKOAMFM810F - - System PP-H System PP-H PP-H 10" ***250 10 - - 362 248 210 25,4 405 12 114 11800
FKOMFM400F - - System PP-H System PP-H PP-H 400* **400 6 - - 515 350 306 26 594 16 169 30310
FKOMFM355F - - System PP-H System PP-H PP-H 355* **350 7 - - 460 330 280 22 530 16 129 23315
FKOMFM315F - - System PP-H System PP-H PP-H 315* **300 8 - - 400 305 245 22 475 12 114 18700
FKOMFM280F - - System PP-H System PP-H PP-H 250*/280* **250 10 - - 350 248 210 22 405 12 114 11800
FKOMFM225F - - System PP-H System PP-H PP-H 200*/225* - 8" 200 10 280 298 - 227 161 23 323 8 71 5900
FKOMFM160F - - System PP-H System PP-H PP-H 160*/180 - 6" 150 10 230 242 - 180 134 23 268 8 70 3200
FKOMFM140F - - System PP-H System PP-H PP-H 125/140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2450
FKOMFM110F - - System PP-H System PP-H PP-H 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1650
FKOMFM090F - - System PP-H System PP-H PP-H 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1300
FKOMFM075F - - System PP-H System PP-H PP-H 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 900
FKOMFM063F - - System PP-H System PP-H PP-H 63 - 2" 50 10 115 126 - 112 70 19 147 4 43 654
FKOAMFM816F - - System PP-H System PP-H PP-H 16" ***400 6 - - 540 350 306 28,5 594 16 169 30310

FKM

Indeks - Wymiar Kategoria produktu System Materiał product.detail.attribute.d - Size DN PN Amin Amax product.detail.attribute.øA B1 B2 f H U Z Masa
g/szt.
FKOMFM050F0SF - - System PP-H System PP-H PP-H 50 - 1"1/2 40 10 99 109 - 106 60 19 132 4 33 474
FKOMFM063F0SF - - System PP-H System PP-H PP-H 63 - 2" 50 10 115 126 - 112 70 19 147 4 43 654
FKOMFM075F0SF - - System PP-H System PP-H PP-H 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 900
FKOMFM090F0SF - - System PP-H System PP-H PP-H 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1300
FKOMFM110F0SF - - System PP-H System PP-H PP-H 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1650
FKOMFM140F0SF - - System PP-H System PP-H PP-H 125/140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2450
FKOMFM160F0SF - - System PP-H System PP-H PP-H 160*/180 - 6" 150 10 230 242 - 180 134 23 268 8 70 3200
  • Interchangeable Disk in PP-H with through shaft, available in different thermoplastic materials: PVC-U, PVC-C, ABS, PVDF Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40Ă·200 Medium series 25, DN 250Ă· 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN DN 65Ă·200 K2, DN 250Ă·300 K3) Can also be installed as an end line valve, bottom discharge valve or tank dump valve [1:Special Lug version] PN 10 fully drilled according to DIN 2501 or ANSI B16.5 cl.150 [1:with molded-in AISI 316 stainless steel threaded inserts] [1:Valve material compatibility] (PP-H) with water conveyance, drinking water and other food substances according to current [1:regulations] Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard drilling PP-GR flanges. DN 40 Ă· 200 valve equipped with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10. DN 250Ă·300 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components drilled according to standard ISO 5211 F10 (excluding DN 350Ă·400), F12, F14. Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
