FKOV/FM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

Przepustnica z odkrytym czpieniem
FK to przepustnica międzykołnierzowa do odcinania lub regulacji przepływu. Charakterystyka konstrukcyjna czyni ją idealną do zastosowań przemysłowych wymagających wysokiej wydajności i długotrwałej niezawodności. Dźwignia zaworu wyposażona jest w okienko z wymienną etykietą pozwalającą na opis np. lokalizacji zaworu na instalacji.

product.detail.headline.features:

  • Ergonomic handle in HIPVC equipped with locking and unlocking device, release, quick operation and graduated adjustment in 10 intermediate positions (DN 40Ă·200). The operating range, starting from the first few degrees of valve opening, also guarantees extremely low pressure drops.
  • Customisable Labelling System: integrated module in the handle, made of a transparent protection plug and a customisable tag holder using the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs.
  • STAINLESS steel square section stem completely isolated from the fluid complying with standard ISO 5211: DN 40Ă·65: 11 mm DN 80Ă·100: 14 mm DN 125Ă·150: 17 mm DN 200: 22 mm DN 250Ă·400: 27 mm
  • Body in polypropylene based compound reinforced with fibreglass (PP-GR) resistant to UV rays and characterised by high mechanical strength.
  • Drilling pattern using oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40Ă·200 guarantee the correct axial alignment of the valve during installation. For DN 250Ă·400 valves, the drilling pattern for the selfcentring system is of the traditional type according to DIN and ANSI standards.
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
Wróć do listy produktów

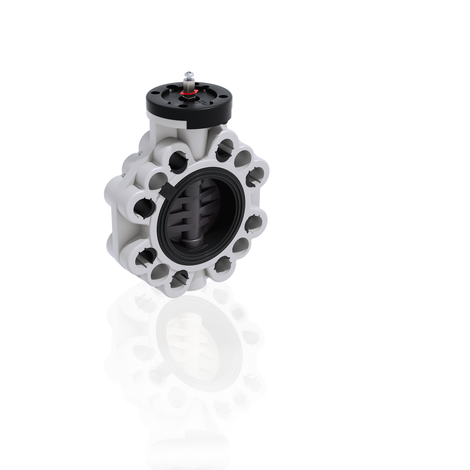

Immagine della valvola a farfalla FKOV/FM DN 80:200 in PVC-U
FKOV/FM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA
Immagine della valvola a farfalla FKOV/FM DN 80:200 in PVC-U
FKOV/FM - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amin Amax product.detail.attribute.øA B1 B2 f H U Z Masa
g/szt.
FKOVFM050E - - System PVC-U System PVC-U PVC-U 50 - 1"1/2 40 16 99 109 - 106 60 19 132 4 33 574
FKOAVFM814E - - System PVC-U System PVC-U PVC-U 14" 350 7 - - 476 330 280 28,5 530 12 129 26000
FKOAVFM812E - - System PVC-U System PVC-U PVC-U ****12" 300 8 - - 432 305 245 25,4 475 12 114 19000
FKOAVFM810E - - System PVC-U System PVC-U PVC-U ****10" 250 10 - - 362 248 210 25,4 405 12 114 12000
FKOVFM400E - - System PVC-U System PVC-U PVC-U 400 400 6 - - 515 350 306 26 594 16 169 34000
FKOVFM355E - - System PVC-U System PVC-U PVC-U 355 350 7 - - 460 330 280 22 530 16 129 26000
FKOVFM315E - - System PVC-U System PVC-U PVC-U 315 300 8 - - 400 305 245 22 475 12 114 19000
FKOVFM280E - - System PVC-U System PVC-U PVC-U ***280 250 10 - - 350 248 210 22 405 12 114 12000
FKOVFM225E - - System PVC-U System PVC-U PVC-U 225 - 8" 200 10 280 298 - 227 161 23 323 8 71 6000
FKOVFM160E - - System PVC-U System PVC-U PVC-U 160 - 6" 150 10 230 242 - 180 134 23 268 8 70 3300
FKOVFM140E - - System PVC-U System PVC-U PVC-U 140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2550
FKOVFM110E - - System PVC-U System PVC-U PVC-U 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1750
FKOVFM090E - - System PVC-U System PVC-U PVC-U 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1400
FKOVFM075E - - System PVC-U System PVC-U PVC-U 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 1000
FKOVFM063E - - System PVC-U System PVC-U PVC-U 63 - 2" 50 16 115 125,5 - 112 70 19 147 4 43 754
FKOAVFM816E - - System PVC-U System PVC-U PVC-U 16" 400 6 - - 540 350 306 28,5 594 16 169 34000

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amin Amax product.detail.attribute.øA B1 B2 f H U Z Masa
g/szt.
FKOVFM050F - - System PVC-U System PVC-U PVC-U 50 - 1"1/2 40 16 99 109 - 106 60 19 132 4 33 574
FKOAVFM814F - - System PVC-U System PVC-U PVC-U 14" 350 7 - - 476 330 280 28,5 530 12 129 26000
FKOAVFM812F - - System PVC-U System PVC-U PVC-U ****12" 300 8 - - 432 305 245 25,4 475 12 114 19000
FKOAVFM810F - - System PVC-U System PVC-U PVC-U ****10" 250 10 - - 362 248 210 25,4 405 12 114 12000
FKOVFM400F - - System PVC-U System PVC-U PVC-U 400 400 6 - - 515 350 306 26 594 16 169 34000
FKOVFM355F - - System PVC-U System PVC-U PVC-U 355 350 7 - - 460 330 380 22 530 16 129 26000
FKOVFM315F - - System PVC-U System PVC-U PVC-U ***315 300 8 - - 400 305 245 22 475 12 114 19000
FKOVFM280F - - System PVC-U System PVC-U PVC-U ***280 250 10 - - 350 248 210 22 405 12 114 12000
FKOVFM225F - - System PVC-U System PVC-U PVC-U 225 - 8" 200 10 280 298 - 227 161 23 323 8 71 6000
FKOVFM160F - - System PVC-U System PVC-U PVC-U 160 - 6" 150 10 230 242 - 180 134 23 268 8 70 3300
FKOVFM140F - - System PVC-U System PVC-U PVC-U 140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2550
FKOVFM110F - - System PVC-U System PVC-U PVC-U 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1750
FKOVFM090F - - System PVC-U System PVC-U PVC-U 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1400
FKOVFM075F - - System PVC-U System PVC-U PVC-U 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 1000
FKOVFM063F - - System PVC-U System PVC-U PVC-U 63 - 2" 50 16 115 125,5 - 112 70 19 147 4 43 754
FKOAVFM816F - - System PVC-U System PVC-U PVC-U 16" 400 6 - - 540 350 306 28,5 594 16 169 34000

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amin Amax product.detail.attribute.øA B1 B2 f H U Z Masa
g/szt.
FKOVFM050F0SF - - System PVC-U System PVC-U PVC-U 50 - 1"1/2 40 16 99 109 - 106 60 19 132 4 33 574
FKOVFM063F0SF - - System PVC-U System PVC-U PVC-U 63 - 2" 50 16 115 125,5 - 112 70 19 147 4 43 754
FKOVFM075F0SF - - System PVC-U System PVC-U PVC-U 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 1000
FKOVFM090F0SF - - System PVC-U System PVC-U PVC-U 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1400
FKOVFM110F0SF - - System PVC-U System PVC-U PVC-U 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1750
FKOVFM140F0SF - - System PVC-U System PVC-U PVC-U 140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2550
FKOVFM160F0SF - - System PVC-U System PVC-U PVC-U 160 - 6" 150 10 230 242 - 180 134 23 268 8 70 3300
  • Interchangeable disk in PVC-U with through shaft, available in different thermoplastic materials: PP-H, PVC-C, ABS, PVDF Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40Ă·200 Medium Series 25, DN 250Ă· 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65Ă·200 K2, DN 250Ă·300 K3) Can also be installed as an end line valve, bottom discharge valve or tank dump valve [1:Special Lug version] PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with [1:molded-in AISI 316 STAINLESS steel threaded inserts] [1:Valve material compatibility ](PVC-U + EPDM) with water conveyance, drinking water and other food substances according to [1:current regulations] Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard drilling PP-GR flanges. DN 40 Ă· 200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, 07, F10. DN 250Ă·400 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components drilled according to standard ISO 5211 F10 (excluding DN 350Ă·400), F12, F14. Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
