M9.06.PX - M9.06.WX
pH/ORP Monitor and Transmitter
pH/ORP Monitor and Transmitter

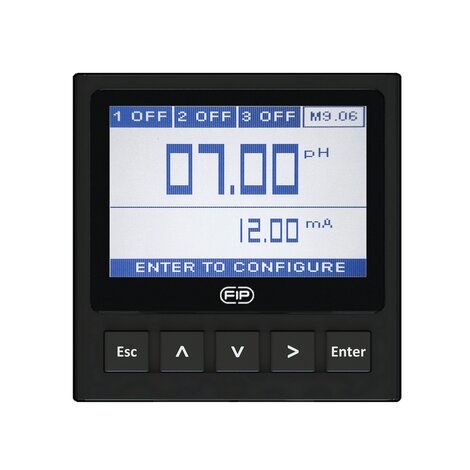

FLS M9.06 is a powerful pH/ORP monitor and
transmitter designed to satisfy
a broad range of applications.
A 4” wide full graphic display
shows measured values
clearly together with many
other useful information.
Moreover, due to the multicolor
bright backlight, measurement
status can be determined
easily also from very long
distance. A tutorial software
guarantees a mistake-proof
and fast set up of every
parameter. A calibration based
on automatic buffer recognition
plus a in line adjustment
allow to achieve a precise
and a reliable measurement
in every conditions. FLS
M9.06 offers a diagnostic
of electrode condition with
practical tips for maximizing
probe performances. The USB
port on the rear part allows the
upgrade of software offering
a wide range of customization
services both standard and on
request.
| Indeks | - | Wymiar | Kategoria produktu | System | Miejsce montażu |
Napięcie | Ilość przewodów |
Rodzaj pomiaru | Sygnał wyjściowy | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|
| M9.06.P1 | - | - | Automatyka | Automatyka | Panel | 12 - 24 VCC | 3/4 wire | pH/ORP | 2*(4-20mA) $2*(S.S.R.) $ 2* (mech. relay) | 550 |
| M9.06.W1 | - | - | Automatyka | Automatyka | Wall | 12 - 24 VCC | 3/4 wire | pH/ORP | 2*(4-20mA) $2*(S.S.R.) $ 2* (mech. relay) | 650 |
| M9.06.W2 | - | - | Automatyka | Automatyka | Wall | 110 - 230 VCA | 3/4 wire | pH/ORP | 2*(4-20mA) $2*(S.S.R.) $ 2* (mech. relay) | 750 |
- APPLICATIONS • Water treatment and regeneration • Industrial waste water treatment and recovery • Scrubber control • Neutralization systems • Heavy metals recovery • Metal surface coating • Processing and manufacturing industry • Chemical production • Swimming pools and SPA MAIN FEATURES • Wide full graphic display • Multicolor backlight visualization • Help on board • Automatic recognition of pH buffers • In line adjustment • Analog output for temperature remoting • Mechanical relay for external device control • Solid State Relays for programmable alarms • USB port for software upgrading
