M9.07.PX - M9.07.WX
Conductivity and Flow Monitor and Transmitter
Conductivity and Flow Monitor and Transmitter
FLS M9.07 is a dual
monitor and transmitter which
combines conductivity and

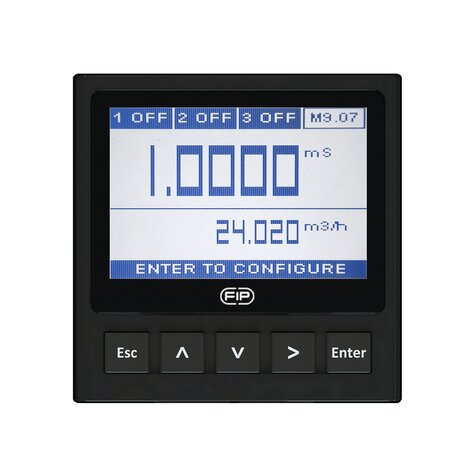

flow measurements. A 4” wide
full graphic display shows
measured values clearly
together with many other
useful information. Moreover,
due to a multicolor display
plus a powerful backlight,
measurement status can
be determined easily from
afar also. A tutorial software
guarantees a mistake-proof
and fast set up of every
parameters. Different type of
calibrations can be performed
to fit user needs for both
measurements. A 4-20mA
output dedicated to each
measurement grants to remote
values to a external device. A
proper combination of digital
outputs allows customized
setups for any process to
be controlled. The USB port
on the rear part allows the
upgrade of software offering
a wide range of customization
services both standard and on
request.
| Indeks | - | Wymiar | Kategoria produktu | System | Miejsce montażu |
Napięcie | Ilość przewodów |
Rodzaj pomiaru | Sygnał wyjściowy | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|
| M9.07.P1 | - | - | Automatyka | Automatyka | Panel | 12 - 24 VCC | 3/4 wire | Conductivity $ temperature $ Flow (Frequency) | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 550 |
| M9.07.W1 | - | - | Automatyka | Automatyka | Wall | 12 - 24 VCC | 3/4 wire | Conductivity $ temperature $ Flow (Frequency) | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 650 |
| M9.07.W2 | - | - | Automatyka | Automatyka | Wall | 110 - 230 VCA | 3/4 wire | Conductivity $ temperature $ Flow (Frequency) | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 750 |
- APPLICATIONS • Water treatment and regeneration • Industrial waste water treatment and recovery • Softener process • Filtration systems • Desalination process • Demineralized water production • Reverse osmosis process • Cooling water monitoring • Processing and manufacturing industry • Chemical production MAIN FEATURES • Wide full graphic display • Multicolor backlight • Help on board • Simultaneous measurement of conductivity, temperature and flow • Fast, intuitive and mistake-proof calibration software • Mechanical relay for external device control • Solid State Relays for programmable alarms • Multilanguage menus • USB port for software upgrading
