Przedłużki zaworów kulowych

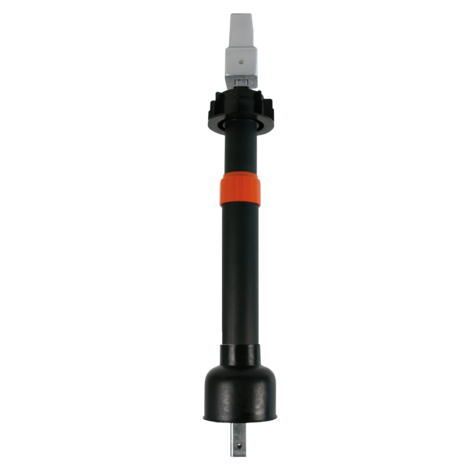

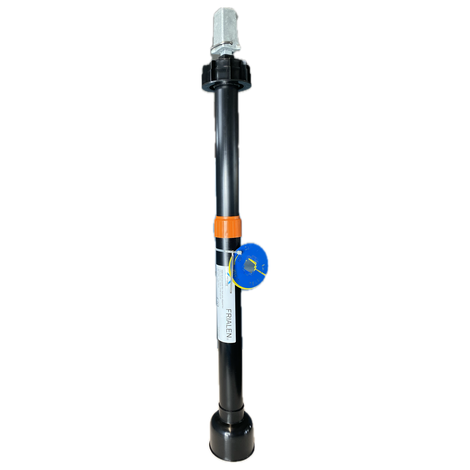

Przedłużka teleskopowa do uruchamiania ze skrzynki ulicznej zaworu kulowego FRIALEN® KHP, KH, AKHP i AKHP-TL. W podanym zakresie (RD) możliwa płynna regulacja długości bez dodatkowych narzędzi, także już po zanstalowaniu. Samonośna niezależnie od ustawienia długości teleskopu. Odporna na korozję. Wersja z kluczem o rozmiarze14 zaprojektowana specjalnie do przyłączydomowych.
| Indeks | d | RD in m | Opak. | Paleta | lmin | lmax | SW | Masa kg/szt. |
|
|---|---|---|---|---|---|---|---|---|---|
| 1 | 615741 | 20-50 | 0,45 - 0,7 | 1 | 42 | 398 | 543 | 30 | 2,000 |
| 1 | 615957 | 20-50 | 0,6 - 1,0 | 1 | 42 | 548 | 843 | 14 | 2,200 |
| 1 | 615328 | 20-50 | 0,6 - 1,0 | 1 | 42 | 490 | 785 | 30 | 2,000 |
| 1 | 616466 | 20-50 | 1,0 - 1,5 | 1 | 42 | 759 | 1303 | 14 | 2,850 |
| 1 | 615330 | 20-50 | 1,0 - 1,5 | 1 | 42 | 799 | 1343 | 30 | 3,600 |
| 1 | 616068 | 20-50 | 1,2 - 2,0 | 1 | 42 | 991 | 1785 | 14 | 3,650 |
| 1 | 615329 | 20-50 | 1,2 - 2,0 | 1 | 42 | 1049 | 1843 | 30 | 4,450 |
| 615958 | 63-225 | 0,6 - 1,0 | 1 | 42 | 537 | 812 | 14 | 1,700 | |
| 615310 | 63-225 | 0,6 - 1,0 | 1 | 42 | 490 | 785 | 30 | 2,780 | |
| 616467 | 63-225 | 1,0 - 1,5 | 1 | 42 | 746 | 1272 | 14 | 5,050 | |
| 615331 | 63-225 | 1,0 - 1,5 | 1 | 42 | 786 | 1312 | 30 | 4,200 | |
| 616069 | 63-225 | 1,2 - 2,0 | 1 | 42 | 980 | 1754 | 14 | 3,450 | |
| 615311 | 63-225 | 1,2 - 2,0 | 1 | 42 | 1038 | 1812 | 30 | 4,950 | |
| 617586 | 20-50 | 0,62 - 0,79 | 1 | 42 | 520 | 350 | 30 + 14 | 2,000 |
Key width SW1 14 mm for use as house connection fitting
Other length on request.
For full-port passage ball valve KH d50 select version BS d63-225
Areas of Application
Telescopic actuating linkage for operation of the FRIALEN KHP, KH, KHW, AKHP und AKHP-TL from the street cap.
Assembly Instructions
Before fusion, the FRIALEN KHP, KH, KHW, AKHP and AKHP-TL must be aligned to suit the type of actuation intended, in order to ensure that the installation kit BS will seat correctly.
Good reasons for using the FRIALEN-Installation kits BS:
Protective pipe of polyethylene protects from intrusion of sand or soil
Assembly without tools
Self supporting in any extended position
Safe from being pulled out
Corrosion proof
Telescope assembly set can be adjusted even once in place and filled
Constructive harmonizing of the transferable torque onto the FRIALEN-Ball Valve
Connection pins made from stainless steel
Coloured marking disk for use with gas and water
Parts of the protective pipe are fully welded together
