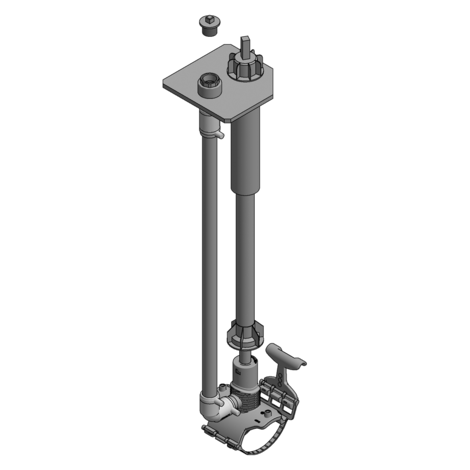

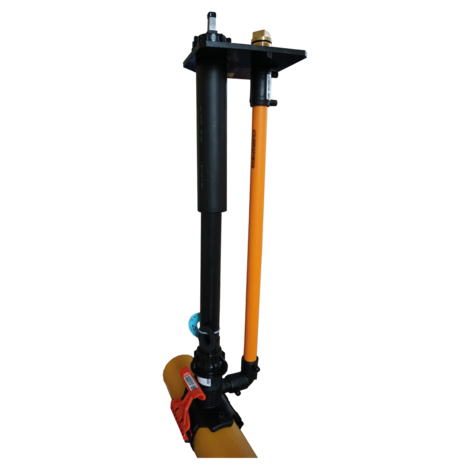

Purge stack GAB for venting PE-HD gas pipes
The FRIALEN purge stack GAB is used for venting pressurized gas pipes during filling or in operation for use as a measuring point fitting for verification of the odorization content.

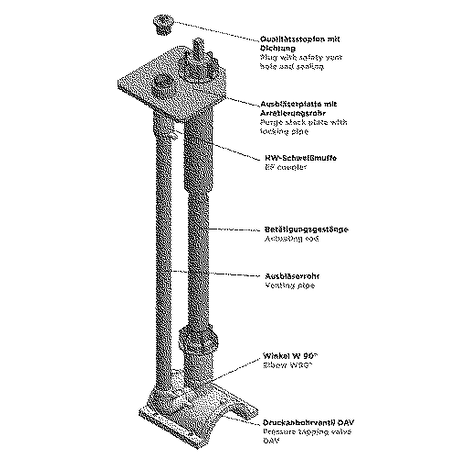

The FRIALEN purge stack GAB is available in two executions;

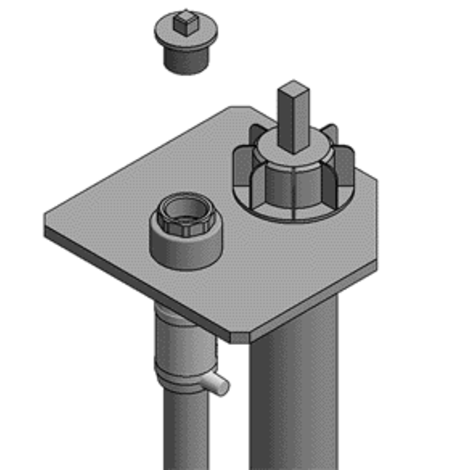

with blow-out 1" and purge stack plate available in square design,

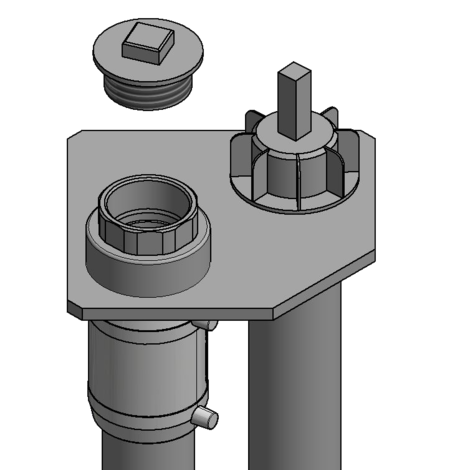

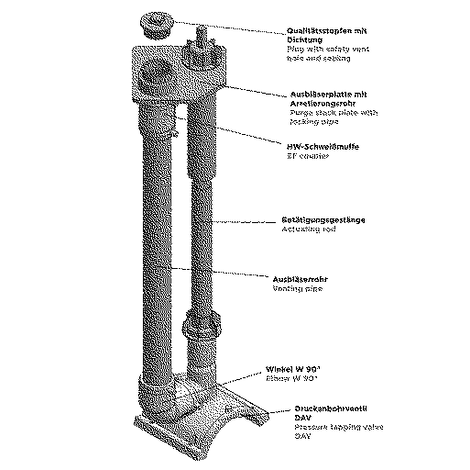

with blow-out 2" and purge stack plate available in diagonal design.
The venting pipe of the FRIALEN purge stack GAB is one metre long as standard and can be adapted to the respective cover height on site. Longer venting pipes are available on request, please note when ordering. The actuating rods (installation set EBS) can be infinitely adjusted within the specified range without additional tools.
PE 100 SDR 11
Maximum working pressure 10 bar (gas)
| Indeks | d1 | RD in m | Opak. | R | Masa kg/szt. |
|---|---|---|---|---|---|
| 2006380 | 63 | 0,7 - 1,0 | 1 | 1" | 4,440 |
| 2006383 | 63 | 0,7 - 1,0 | 1 | 2" | 6,710 |
| 2009080 | 90 | 0,7 - 1,0 | 1 | 1" | 5,240 |
| 2009083 | 90 | 0,7 - 1,0 | 1 | 2" | 7,400 |
| 2011080 | 110 | 0,7 - 1,0 | 1 | 1" | 5,500 |
| 2011083 | 110 | 0,7 - 1,0 | 1 | 2" | 7,650 |
| 2012580 | 125 | 0,7 - 1,0 | 1 | 1" | 5,700 |
| 2012583 | 125 | 0,7 - 1,0 | 1 | 2" | 7,850 |
| 2016080 | 160 | 0,7 - 1,0 | 1 | 1" | 6,200 |
| 2016083 | 160 | 0,7 - 1,0 | 1 | 2" | 8,330 |
| 2018080 | 180 | 0,7 - 1,0 | 1 | 1" | 6,200 |
| 2018083 | 180 | 0,7 - 1,0 | 1 | 2" | 8,340 |
| 2020080 | 200 | 0,7 - 1,0 | 1 | 1" | 6,300 |
| 2022580 | 225 | 0,7 - 1,0 | 1 | 1" | 6,300 |
| 2022583 | 225 | 0,7 - 1,0 | 1 | 2" | 8,440 |
Execution and scope of delivery
The FRIALEN purge stack GAB is available in two executions;
with blow-out 1" and purge stack plate available in square design,
with blow-out 2" and purge stack plate available in diagonal design.
Areas of Application
The FRIALEN purge stack GAB is used for venting pressurized gas pipes during filling or in operation for use as a measuring point fitting for verification of the odorization content.
Assembly Instructions
The venting pipe of the FRIALEN purge stack GAB is one metre long as standard and can be adapted to the respective cover height on site. Longer venting pipes are available on request, please note when ordering.
The actuating rods (installation set EBS) can be infinitely adjusted within the specified range without additional tools.

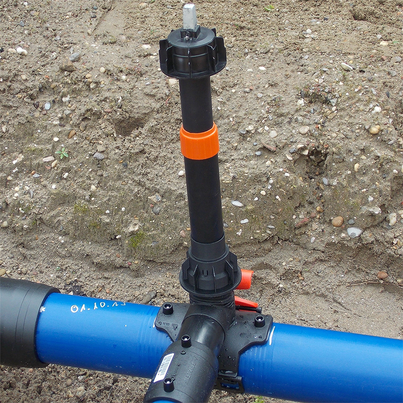

The fusion of the FRIALEN purge stack GAB fitted with the pressure tapping valve (DAV) to the PE-HD pipe takes place using FRIALEN-fusing – leakproof and longitudinally strong.
Good reasons for using the FRIALEN Purge stack GAB:
Compact design
Maximum working pressure up to 10 bar (MOP 10)
Easy installation of all components and flexible adjustment of the venting pipe to the respective cover height on site
Purge stack plate suitable for all valve boxes type DIN 3582
Plug with safety vent hole
Plug with manufacturer confirmation for gas applications → quality plug
Venting pipe and purge stack plate are torsion resistant connected
Purge stack plate routes the actuating rod and define the position of the purge stack cap
Locking pipe anchors itself in the ground and absorbs the actuating force
All components (except quality plug with safety vent hole) with DVGW-Registration
