RBM
ZŁĄCZKI DO ZGRZEWANIA DOCZOŁOWEGO - REDUKCYJNE

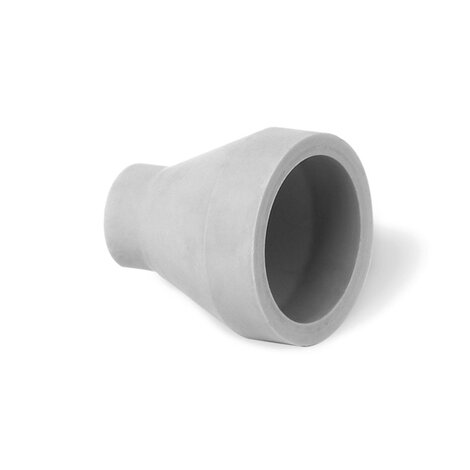

Redukcja centryczna krótka do zgrzewania doczołowego, SDR 17,6 - S 8,3
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem łączonych metodą zgrzewania doczołowego.

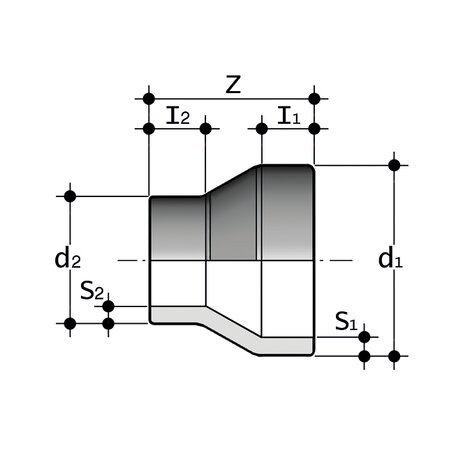

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | product.detail.attribute.d[5:1] | d2 | product.detail.attribute.l[5:1] | product.detail.attribute.l[5:2] | Z | product.detail.attribute.S[5:1] | product.detail.attribute.S[5:2] | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RBM17050032 | - | - | System PP-H | System PP-H | PP-H | 50 | 32 | 12 | 12 | 55 | 2.9 | 2 | 17 |
| RBM17050040 | - | - | System PP-H | System PP-H | PP-H | 50 | 40 | 12 | 12 | 55 | 2.9 | 2,3 | 20 |
| RBM17063032 | - | - | System PP-H | System PP-H | PP-H | 63 | 32 | 16 | 12 | 65 | 3.6 | 2 | 32 |
| RBM17063040 | - | - | System PP-H | System PP-H | PP-H | 63 | 40 | 16 | 12 | 65 | 3.6 | 2,3 | 36 |
| RBM17063050 | - | - | System PP-H | System PP-H | PP-H | 63 | 50 | 16 | 12 | 65 | 3.6 | 2.9 | 38 |
| RBM17075050 | - | - | System PP-H | System PP-H | PP-H | 75 | 40 | 19 | 12 | 71 | 4.3 | 2,3 | 50 |
| RBM17075063 | - | - | System PP-H | System PP-H | PP-H | 75 | 50 | 19 | 12 | 71 | 4.3 | 2.9 | 54 |
| RBM17090063 | - | - | System PP-H | System PP-H | PP-H | 90 | 50 | 22 | 12 | 80 | 5,1 | 2.9 | 86 |
| RBM17090075 | - | - | System PP-H | System PP-H | PP-H | 90 | 63 | 22 | 16 | 80 | 5,1 | 3.6 | 82 |
| RBM17110063 | - | - | System PP-H | System PP-H | PP-H | 110 | 50 | 28 | 12 | 105 | 6.3 | 2.9 | 100 |
| RBM17110075 | - | - | System PP-H | System PP-H | PP-H | 110 | 63 | 28 | 16 | 97 | 6.3 | 3.6 | 100 |
| RBM17110090 | - | - | System PP-H | System PP-H | PP-H | 110 | 75 | 28 | 19 | 97 | 6.3 | 4.3 | 90 |
| RBM17160110 | - | - | System PP-H | System PP-H | PP-H | 160 | 90 | 40 | 22 | 135 | 9.1 | 5,1 | 400 |
| RBM17180090 | - | - | System PP-H | System PP-H | PP-H | 160 | 140 | 40 | 35 | 124 | 9.1 | 8 | 250 |
| RBM17200160 | - | - | System PP-H | System PP-H | PP-H | 200 | 140 | 50 | 35 | 154 | 11.4 | 8 | 750 |
| RBM17225160 | - | - | System PP-H | System PP-H | PP-H | 225 | 140 | 52 | 49 | 150 | 12.7 | 8 | 1060 |
| RBM17280200 | - | - | System PP-H | System PP-H | PP-H | 250 | 225 | 60 | 55 | 182 | 14.2 | 12.8 | 680 |
| RBM17280225 | - | - | System PP-H | System PP-H | PP-H | 280 | 200 | 85 | 70 | 200 | 15.9 | 11.4 | 2400 |
| RBM17315225 | - | - | System PP-H | System PP-H | PP-H | 315 | 200 | 95 | 85 | 230 | 17.9 | 11.4 | 3220 |
| RBM17315250 | - | - | System PP-H | System PP-H | PP-H | 315 | 225 | 84 | 60 | 238 | 17.9 | 12.8 | 3320 |
| RBM17315280 | - | - | System PP-H | System PP-H | PP-H | 315 | 250 | 95 | 95 | 230 | 17.9 | 14.2 | 3500 |
| RBM17355200 | - | - | System PP-H | System PP-H | PP-H | 315 | 280 | 80 | 70 | 222 | 17.9 | 15.9 | 3510 |
| RBM17355225 | - | - | System PP-H | System PP-H | PP-H | 355 | 200 | 57 | 40 | 160 | 20,1 | 11.4 | 3220 |
| RBM17355250 | - | - | System PP-H | System PP-H | PP-H | 355 | 225 | 57 | 40 | 140 | 20,1 | 12,7 | 3200 |
| RBM17355280 | - | - | System PP-H | System PP-H | PP-H | 355 | 250 | 54 | 40 | 130 | 20,1 | 14,2 | 2300 |
| RBM17355315 | - | - | System PP-H | System PP-H | PP-H | 355 | 280 | 53 | 40 | 120 | 20.1 | 15.9 | 2740 |
| RBM17400225 | - | - | System PP-H | System PP-H | PP-H | 355 | 315 | 53 | 40 | 110 | 20.1 | 17.9 | 2500 |
| RBM17400250 | - | - | System PP-H | System PP-H | PP-H | 400 | 225 | 64 | 40 | 160 | 22.7 | 12.7 | 4600 |
| RBM17400280 | - | - | System PP-H | System PP-H | PP-H | 400 | 250 | 61 | 40 | 150 | 22.7 | 14.2 | 4400 |
| RBM17400315 | - | - | System PP-H | System PP-H | PP-H | 400 | 280 | 60 | 40 | 140 | 22.7 | 15.9 | 4200 |
| RBM17400355 | - | - | System PP-H | System PP-H | PP-H | 400 | 315 | 50 | 40 | 120 | 22.7 | 17.9 | 3360 |
| RBM17450280 | - | - | System PP-H | System PP-H | PP-H | 400 | 355 | 51 | 40 | 110 | 22.7 | 20.1 | 3160 |
| RBM17450315 | - | - | System PP-H | System PP-H | PP-H | 450 | 280 | 65 | 40 | 160 | 25.5 | 15.9 | 4360 |
| RBM17450355 | - | - | System PP-H | System PP-H | PP-H | 450 | 315 | 55 | 40 | 140 | 25.5 | 17.9 | 4900 |
| RBM17450400 | - | - | System PP-H | System PP-H | PP-H | 450 | 355 | 57 | 40 | 130 | 25.5 | 20.1 | 4900 |
| RBM17500315 | - | - | System PP-H | System PP-H | PP-H | 450 | 400 | 60 | 40 | 120 | 25.5 | 22.7 | 4600 |
| RBM17500355 | - | - | System PP-H | System PP-H | PP-H | 500 | 315 | 71 | 40 | 170 | 28.4 | 17.9 | 8440 |
| RBM17500400 | - | - | System PP-H | System PP-H | PP-H | 500 | 355 | 62 | 40 | 150 | 28.4 | 20.1 | 7720 |
| RBM17500450 | - | - | System PP-H | System PP-H | PP-H | 500 | 400 | 65 | 40 | 140 | 28.4 | 22.7 | 7360 |
| RBM17560400 | - | - | System PP-H | System PP-H | PP-H | 500 | 450 | 60 | 40 | 120 | 28.4 | 25.5 | 5260 |
| RBM17560450 | - | - | System PP-H | System PP-H | PP-H | 560 | 400 | 68 | 40 | 160 | 31.7 | 22.7 | 9400 |
| RBM17560500 | - | - | System PP-H | System PP-H | PP-H | 560 | 450 | 62 | 40 | 140 | 31.7 | 25.5 | 8960 |
| RBM17630400 | - | - | System PP-H | System PP-H | PP-H | 560 | 500 | 67 | 40 | 130 | 31.7 | 28.4 | 7270 |
| RBM17630450 | - | - | System PP-H | System PP-H | PP-H | 630 | 400 | 78 | 40 | 190 | 35.7 | 22.7 | 14620 |
| RBM17630500 | - | - | System PP-H | System PP-H | PP-H | 630 | 450 | 72 | 40 | 170 | 35.7 | 25.5 | 13100 |
| RBM17630560 | - | - | System PP-H | System PP-H | PP-H | 630 | 500 | 67 | 40 | 150 | 35.7 | 28.4 | 11400 |
| RBM17710500 | - | - | System PP-H | System PP-H | PP-H | 630 | 560 | 64 | 40 | 130 | 35.7 | 31.7 | 10200 |
| RBM17710560 | - | - | System PP-H | System PP-H | PP-H | 710 | 500 | 84 | 40 | 190 | 40.2 | 25.5 | 19000 |
| RBM17710630 | - | - | System PP-H | System PP-H | PP-H | 710 | 560 | 81 | 40 | 170 | 40.2 | 28.4 | 17400 |
| RBM17800560 | - | - | System PP-H | System PP-H | PP-H | 710 | 630 | 71 | 40 | 140 | 40.2 | 35.7 | 13700 |
| RBM17800630 | - | - | System PP-H | System PP-H | PP-H | 800 | 560 | 85 | 40 | 200 | 45.3 | 31.7 | 19700 |
| RBM17800710 | - | - | System PP-H | System PP-H | PP-H | 800 | 630 | 85 | 40 | 180 | 45.3 | 35.7 | 23400 |
