TRBM
ZŁĄCZKI DO ZGRZEWANIA DOCZOŁOWEGO - REDUKCYJNE
Trójnik 90° redukcyjny krótki, do zgrzewania doczołowego, SDR 11 - S 5
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem łączonych metodą zgrzewania doczołowego.

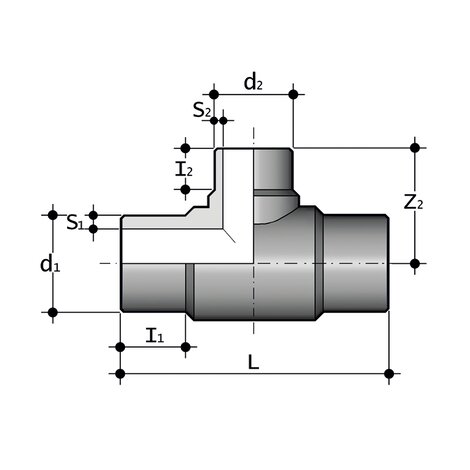

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | product.detail.attribute.d[5:1] | d2 | product.detail.attribute.i[5:1] | product.detail.attribute.I[5:2] | L | product.detail.attribute.s[5:1] | product.detail.attribute.s[5:2] | product.detail.attribute.Z[5:2] | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TRBM11063050 | - | - | System PP-H | System PP-H | PP-H | *63 | 50 | 63 | 56 | 215 | 5.8 | 4.6 | 103 | 300 |
| TRBM11075032 | - | - | System PP-H | System PP-H | PP-H | *75 | 32 | 70 | 46 | 256 | 6.8 | 2.9 | 103 | 500 |
| TRBM11075050 | - | - | System PP-H | System PP-H | PP-H | *75 | 50 | 70 | 56 | 253 | 6.8 | 4.6 | 113 | 540 |
| TRBM11075063 | - | - | System PP-H | System PP-H | PP-H | *75 | 63 | 70 | 63 | 255 | 6.8 | 5.8 | 117 | 560 |
| TRBM11090032 | - | - | System PP-H | System PP-H | PP-H | 90 | 32 | 53 | 23 | 203 | 8.2 | 2.9 | 85 | 560 |
| TRBM11090050 | - | - | System PP-H | System PP-H | PP-H | 90 | 50 | 53 | 28 | 213 | 8.2 | 4.6 | 100 | 580 |
| TRBM11090063 | - | - | System PP-H | System PP-H | PP-H | *90 | 63 | 82 | 66 | 282 | 8.2 | 5.8 | 127 | 790 |
| TRBM11090075 | - | - | System PP-H | System PP-H | PP-H | *90 | 75 | 73 | 68 | 280 | 8.2 | 6.8 | 138 | 800 |
| TRBM11110032 | - | - | System PP-H | System PP-H | PP-H | 110 | 32 | 66 | 22 | 234 | 10.0 | 2.9 | 91 | 940 |
| TRBM11110050 | - | - | System PP-H | System PP-H | PP-H | 110 | 50 | 66 | 27 | 240 | 10.0 | 4.6 | 101 | 950 |
| TRBM11110063 | - | - | System PP-H | System PP-H | PP-H | *110 | 63 | 88 | 68 | 328 | 10.0 | 5.8 | 149 | 1345 |
| TRBM11110075 | - | - | System PP-H | System PP-H | PP-H | *110 | 75 | 86 | 70 | 320 | 10.0 | 6.8 | 151 | 1250 |
| TRBM11110090 | - | - | System PP-H | System PP-H | PP-H | *110 | 90 | 86 | 79 | 320 | 10.0 | 8.2 | 158 | 1440 |
| TRBM11125063 | - | - | System PP-H | System PP-H | PP-H | 125 | 63 | 54 | 25 | 254 | 10.0 | 5.8 | 107 | 1360 |
| TRBM11125090 | - | - | System PP-H | System PP-H | PP-H | *125 | 90 | - | - | 340 | 11.4 | 8.2 | 170 | 1660 |
| TRBM11125110 | - | - | System PP-H | System PP-H | PP-H | *125 | 110 | 90 | 83 | 341 | 11.4 | 10 | 170 | 1860 |
| TRBM11140063 | - | - | System PP-H | System PP-H | PP-H | 140 | 63 | 83 | 32 | 291 | 12.7 | 5.8 | 120 | 1740 |
| TRBM11140075 | - | - | System PP-H | System PP-H | PP-H | 140 | 75 | 81 | 35 | 291 | 12.7 | 6.8 | 130 | 1840 |
| TRBM11140090 | - | - | System PP-H | System PP-H | PP-H | 140 | 90 | 81 | 41 | 291 | 12.7 | 8.2 | 130 | 1960 |
| TRBM11140110 | - | - | System PP-H | System PP-H | PP-H | 140 | 110 | 50 | 44 | 291 | 12.7 | 10 | 140 | 2200 |
| TRBM11160063 | - | - | System PP-H | System PP-H | PP-H | *160 | 63 | 100 | 67 | 347 | 14,6 | 5,8 | 175 | 2640 |
| TRBM11160075 | - | - | System PP-H | System PP-H | PP-H | *160 | 75 | 98 | 74 | 343 | 14.6 | 6.8 | 180 | 2560 |
| TRBM11160090 | - | - | System PP-H | System PP-H | PP-H | *160 | 90 | 104 | 83 | 412 | 14.6 | 8.2 | 190 | 3685 |
| TRBM11160110 | - | - | System PP-H | System PP-H | PP-H | *160 | 110 | 104 | 89 | 414 | 14.6 | 10 | 200 | 3685 |
| TRBM11160125 | - | - | System PP-H | System PP-H | PP-H | 160 | 125 | 58 | 47 | 315 | 14.6 | 11.4 | 150 | 2750 |
| TRBM11180063 | - | - | System PP-H | System PP-H | PP-H | 180 | 63 | 125 | 30 | 348 | 16.4 | 5.8 | 140 | 2980 |
| TRBM11180075 | - | - | System PP-H | System PP-H | PP-H | 180 | 75 | 112 | 30 | 348 | 16.4 | 6.8 | 160 | 3060 |
| TRBM11180090 | - | - | System PP-H | System PP-H | PP-H | *180 | 90 | - | - | 427 | 16.4 | 8.2 | 200 | 4360 |
| TRBM11180110 | - | - | System PP-H | System PP-H | PP-H | *180 | 110 | - | - | 464 | 16.4 | 10 | 225 | 4640 |
| TRBM11180125 | - | - | System PP-H | System PP-H | PP-H | 180 | 125 | - | - | 366 | 16.4 | 11.4 | 166 | 3220 |
| TRBM11200063 | - | - | System PP-H | System PP-H | PP-H | *200 | 63 | 122 | 63 | 500 | 18.2 | 5.8 | 190 | 5700 |
| TRBM11200090 | - | - | System PP-H | System PP-H | PP-H | *200 | 90 | 122 | 79 | 498 | 18.2 | 5.1 | 207 | 6550 |
| TRBM11200110 | - | - | System PP-H | System PP-H | PP-H | *200 | 110 | 122 | 82 | 500 | 18.2 | 6.3 | 215 | 7040 |
| TRBM11200125 | - | - | System PP-H | System PP-H | PP-H | *200 | 125 | 115 | 43 | 388 | 18.2 | 11.4 | 165 | 6920 |
| TRBM11200160 | - | - | System PP-H | System PP-H | PP-H | *200 | 160 | 122 | 98 | 500 | 18.2 | 9.1 | 234 | 8300 |
| TRBM11225075 | - | - | System PP-H | System PP-H | PP-H | *225 | 75 | 120 | 70 | 555 | 20.5 | 6.8 | 227 | 6400 |
| TRBM11225090 | - | - | System PP-H | System PP-H | PP-H | *225 | 90 | 129 | 82 | 556 | 20.5 | 8.2 | 228 | 9380 |
| TRBM11225110 | - | - | System PP-H | System PP-H | PP-H | *225 | 110 | 130 | 86 | 556 | 20.5 | 10 | 238 | 6600 |
| TRBM11225125 | - | - | System PP-H | System PP-H | PP-H | 225 | 125 | 135 | 40 | 456 | 20.5 | 11.4 | 178 | 6120 |
| TRBM11225180 | - | - | System PP-H | System PP-H | PP-H | 225 | 160 | 101 | 98 | 498 | 20.5 | 14,6 | 247 | 8280 |
| TRBM11250110 | - | - | System PP-H | System PP-H | PP-H | *225 | 180 | 135 | 135 | 558 | 20.5 | 16,4 | 280 | 9540 |
| TRBM11250160 | - | - | System PP-H | System PP-H | PP-H | *250 | 110 | 135 | 38 | 450 | 22.7 | 10 | 197 | 7700 |
| TRBM11315110 | - | - | System PP-H | System PP-H | PP-H | *250 | 160 | 110 | 58 | 458 | 22.7 | 14.6 | 213 | 8040 |
| TRBM11315160 | - | - | System PP-H | System PP-H | PP-H | *315 | 110 | 150 | 82 | 695 | 28.6 | 10 | 277 | 15280 |
| TRBM11315225 | - | - | System PP-H | System PP-H | PP-H | *315 | 160 | 150 | 102 | 695 | 28.6 | 14.6 | 290 | 16600 |
| TRBM11315250 | - | - | System PP-H | System PP-H | PP-H | *315 | 225 | - | - | 650 | 28.6 | 20.5 | 335 | 24820 |
