TRBM
ZŁĄCZKI DO ZGRZEWANIA DOCZOŁOWEGO - REDUKCYJNE

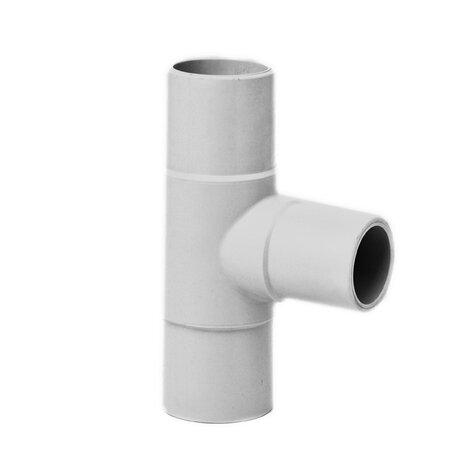

Trójnik 90° redukcyjny krótki, do zgrzewania doczołowego, SDR 17,6 - S 8,3
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem łączonych metodą zgrzewania doczołowego.

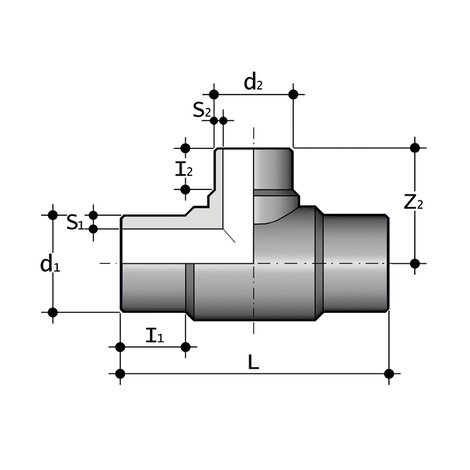

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | product.detail.attribute.d[5:1] | d2 | product.detail.attribute.i[5:1] | product.detail.attribute.I[5:2] | L | product.detail.attribute.s[5:1] | product.detail.attribute.s[5:2] | product.detail.attribute.Z[5:2] | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TRBM17063050 | - | - | System PP-H | System PP-H | PP-H | *63 | 50 | 63 | 56 | 220 | 3.8 | 3 | 103 | 210 |
| TRBM17075050 | - | - | System PP-H | System PP-H | PP-H | *75 | 50 | 70 | 55 | 253 | 4.5 | 3 | 113 | 410 |
| TRBM17075063 | - | - | System PP-H | System PP-H | PP-H | *75 | 63 | 70 | 63 | 260 | 4.5 | 3.8 | 117 | 420 |
| TRBM17090063 | - | - | System PP-H | System PP-H | PP-H | *90 | 63 | 79 | 63 | 275 | 5.4 | 3.8 | 137 | 570 |
| TRBM17090075 | - | - | System PP-H | System PP-H | PP-H | *90 | 75 | 74 | 70 | 278 | 5.4 | 4.5 | 138 | 570 |
| TRBM17110063 | - | - | System PP-H | System PP-H | PP-H | *110 | 63 | 85 | 66 | 315 | 6.6 | 3.8 | 159 | 960 |
| TRBM17110075 | - | - | System PP-H | System PP-H | PP-H | *110 | 75 | 82 | 70 | 315 | 6.6 | 4.5 | 157 | 850 |
| TRBM17110090 | - | - | System PP-H | System PP-H | PP-H | *110 | 90 | 82 | 79 | 315 | 6.6 | 5.4 | 155 | 900 |
| TRBM17125063 | - | - | System PP-H | System PP-H | PP-H | *125 | 63 | 70 | 31 | 271 | 7.4 | 3.8 | 112 | 1030 |
| TRBM17125110 | - | - | System PP-H | System PP-H | PP-H | *125 | 110 | 87 | 82 | 340 | 7.4 | 6.6 | 170 | 1240 |
| TRBM17140063 | - | - | System PP-H | System PP-H | PP-H | 140 | 63 | 83 | 32 | 291 | 8.0 | 3.6 | 120 | 1290 |
| TRBM17140075 | - | - | System PP-H | System PP-H | PP-H | 140 | 75 | 81 | 35 | 291 | 8.0 | 4.3 | 120 | 1370 |
| TRBM17140090 | - | - | System PP-H | System PP-H | PP-H | 140 | 90 | 81 | 41 | 291 | 8.0 | 5.1 | 130 | 1380 |
| TRBM17140110 | - | - | System PP-H | System PP-H | PP-H | 140 | 110 | 50 | 44 | 291 | 8.0 | 6.3 | 140 | 1600 |
| TRBM17160063 | - | - | System PP-H | System PP-H | PP-H | *160 | 63 | 98 | 64 | 347 | 9.5 | 3.8 | 175 | 1850 |
| TRBM17160075 | - | - | System PP-H | System PP-H | PP-H | *160 | 75 | 98 | 75 | 348 | 9.5 | 4.5 | 179 | 1910 |
| TRBM17160090 | - | - | System PP-H | System PP-H | PP-H | *160 | 90 | 100 | 81 | 349 | 9.5 | 5.4 | 182 | 1940 |
| TRBM17160110 | - | - | System PP-H | System PP-H | PP-H | *160 | 110 | 98 | 85 | 400 | 9.5 | 6.6 | 202 | 2360 |
| TRBM17160125 | - | - | System PP-H | System PP-H | PP-H | 160 | 125 | 58 | 47 | 315 | 9.1 | 7.1 | 150 | 2060 |
| TRBM17180063 | - | - | System PP-H | System PP-H | PP-H | 180 | 63 | 125 | 30 | 348 | 10.2 | 3.6 | 140 | 2160 |
| TRBM17180075 | - | - | System PP-H | System PP-H | PP-H | 180 | 75 | 112 | 30 | 348 | 10.2 | 4.3 | 160 | 2230 |
| TRBM17180090 | - | - | System PP-H | System PP-H | PP-H | *180 | 90 | 134 | 97 | 420 | 10.7 | 5.4 | 200 | 2800 |
| TRBM17180110 | - | - | System PP-H | System PP-H | PP-H | 180 | 110 | 92 | 50 | 348 | 10.2 | 6.3 | 150 | 2325 |
| TRBM17180125 | - | - | System PP-H | System PP-H | PP-H | 180 | 125 | 92 | 50 | 358 | 10.7 | 7.4 | 156 | 2240 |
| TRBM17200063 | - | - | System PP-H | System PP-H | PP-H | *200 | 63 | 134 | 80 | 550 | 11.9 | 3.8 | 225 | 4960 |
| TRBM17200090 | - | - | System PP-H | System PP-H | PP-H | *200 | 90 | 134 | 95 | 550 | 11.9 | 5.4 | 227 | 4900 |
| TRBM17200110 | - | - | System PP-H | System PP-H | PP-H | *200 | 110 | 134 | 103 | 560 | 11.9 | 6.6 | 245 | 5110 |
| TRBM17200125 | - | - | System PP-H | System PP-H | PP-H | *200 | 125 | 134 | 110 | 550 | 11.9 | 7.4 | 240 | 5060 |
| TRBM17200160 | - | - | System PP-H | System PP-H | PP-H | *200 | 160 | 134 | 114 | 550 | 11.9 | 9.5 | 265 | 6150 |
| TRBM17225075 | - | - | System PP-H | System PP-H | PP-H | *225 | 75 | 120 | 75 | 451 | 13.4 | 4.5 | 226 | 4630 |
| TRBM17225090 | - | - | System PP-H | System PP-H | PP-H | *225 | 90 | 120 | 79 | 450 | 13.4 | 5.4 | 224 | 4820 |
| TRBM17225110 | - | - | System PP-H | System PP-H | PP-H | *225 | 110 | 120 | 86 | 449 | 13.4 | 6.6 | 226 | 4960 |
| TRBM17225125 | - | - | System PP-H | System PP-H | PP-H | 225 | 125 | - | - | 445 | 13.4 | 7.4 | 180 | 4830 |
| TRBM17225160 | - | - | System PP-H | System PP-H | PP-H | *225 | 160 | 120 | 98 | 498 | 13.4 | 9.5 | 250 | 6130 |
| TRBM17225180 | - | - | System PP-H | System PP-H | PP-H | *225 | 180 | 134 | 134 | 558 | 13.4 | 10.7 | 280 | 7100 |
