VKDIV/SHX - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®

Zawór kulowy 2-drożny DUAL BLOCK® z blokadą dźwigni oraz wkładkami gwintowanymi ze stali nierdzewnej do mocowania, ze śrubunkami z końcówkami mufowymi do klejenia, metryczny
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

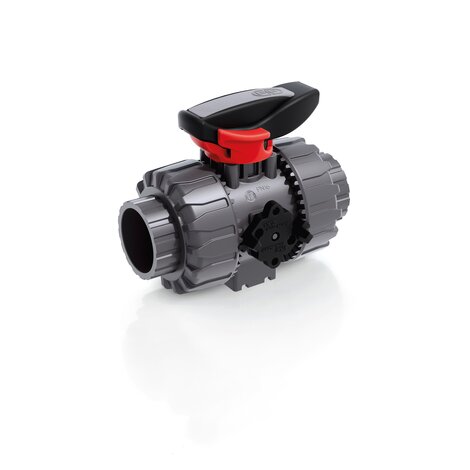

Render della valvola a sfera a 2 vie DUAL BLOCK® VKDIV/SHX - DN 10:50 in PVC-U
VKDIV/SHX - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®
Render della valvola a sfera a 2 vie DUAL BLOCK® VKDIV/SHX - DN 10:50 in PVC-U
VKDIV/SHX - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®

EPDM

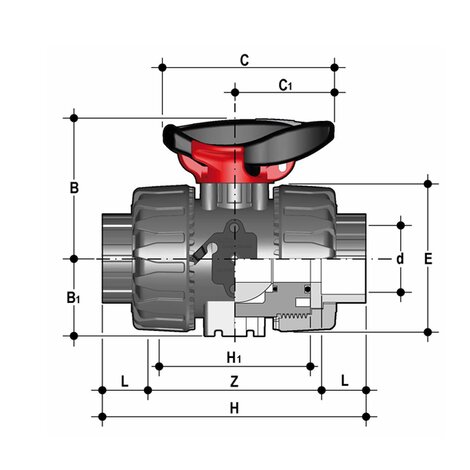

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKDIVSHX016E - - System PVC-U System PVC-U PVC-U 16 10 16 54 29 67 40 54 103 65 14 75 225
VKDIVSHX020E - - System PVC-U System PVC-U PVC-U 20 15 16 54 29 67 40 54 103 65 16 71 215
VKDIVSHX025E - - System PVC-U System PVC-U PVC-U 25 20 16 65 34,5 85 49 65 115 70 19 77 340
VKDIVSHX032E - - System PVC-U System PVC-U PVC-U 32 25 16 69,5 39 85 49 73 128 78 22 84 448
VKDIVSHX040E - - System PVC-U System PVC-U PVC-U 40 32 16 82,5 46 108 64 86 146 88 26 94 703
VKDIVSHX050E - - System PVC-U System PVC-U PVC-U 50 40 16 89 52 108 64 98 164 93 31 102 935
VKDIVSHX063E - - System PVC-U System PVC-U PVC-U 63 50 16 108 62 134 76 122 199 111 38 123 1587

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKDIVSHX016F - - System PVC-U System PVC-U PVC-U 16 10 16 54 29 67 40 54 103 65 14 75 225
VKDIVSHX020F - - System PVC-U System PVC-U PVC-U 20 15 16 54 29 67 40 54 103 65 16 71 215
VKDIVSHX025F - - System PVC-U System PVC-U PVC-U 25 20 16 65 34,5 85 49 65 115 70 19 77 340
VKDIVSHX032F - - System PVC-U System PVC-U PVC-U 32 25 16 69,5 39 85 49 73 128 78 22 84 448
VKDIVSHX040F - - System PVC-U System PVC-U PVC-U 40 32 16 82,5 46 108 64 86 146 88 26 94 703
VKDIVSHX050F - - System PVC-U System PVC-U PVC-U 50 40 16 89 52 108 64 98 164 93 31 102 935
VKDIVSHX063F - - System PVC-U System PVC-U PVC-U 63 50 16 108 62 134 76 122 199 111 38 123 1587
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
