VKDJV - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®

Zawór kulowy 2-drożny DUAL BLOCK® ze śrubunkami z końcówkami mufowymi do wklejenia JIS
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

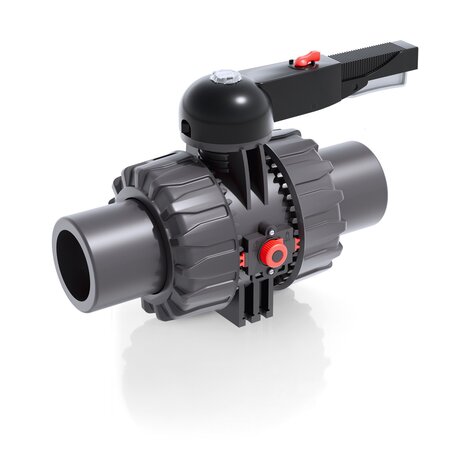

Render della valvola a sfera a 2 vie DUAL BLOCK® VKDJV - DN 65:100 in PVC-U
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 65:100
Render della valvola a sfera a 2 vie DUAL BLOCK® VKDJV - DN 65:100 in PVC-U
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 65:100

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKDJV212E - - System PVC-U System PVC-U PVC-U 2” 1/2 65 16 164 87 225 175 164 267 133 61 145 4435
VKDJV300E - - System PVC-U System PVC-U PVC-U 3” 80 16 177 105 327 272 203 294 149 64,5 165 7250
VKDJV400E - - System PVC-U System PVC-U PVC-U 4” 100 16 195 129 385 330 238 370 167 84 202 11580

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKDJV212F - - System PVC-U System PVC-U PVC-U 2” 1/2 65 16 164 87 225 175 164 267 133 61 145 4435
VKDJV300F - - System PVC-U System PVC-U PVC-U 3” 80 16 177 105 327 272 203 294 149 64,5 165 7250
VKDJV400F - - System PVC-U System PVC-U PVC-U 4” 100 16 195 129 385 330 238 370 167 84 202 11580
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
