VKDOC - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®

Zawór kulowy 2-drożny DUAL BLOCK® z kołnierzami zg. z EN/ISO/DIN PN 10/16 i EN 558-1
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

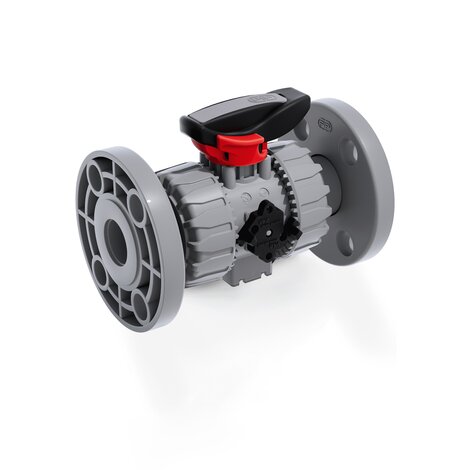

Render della valvola a sfera a due vie DUAL BLOCK® VKDOC - DN 10:50 in PVC-C
Disegno tecnico VKDOM-VKDOAM DN 10:50
Render della valvola a sfera a due vie DUAL BLOCK® VKDOC - DN 10:50 in PVC-C
Disegno tecnico VKDOM-VKDOAM DN 10:50

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 F f H product.detail.attribute.H[5:1] Sp U Masa
g/szt.
VKDOC020E - - System PVC-C System PVC-C PVC-C 20 15 16 54 29 67 40 65 14 130 65 11 4 488,1
VKDOC025E - - System PVC-C System PVC-C PVC-C 25 20 16 65 34,5 85 49 75 14 150 70 13,5 4 663,1
VKDOC032E - - System PVC-C System PVC-C PVC-C 32 25 16 69,5 39 85 49 85 14 160 78 14 4 895,9
VKDOC040E - - System PVC-C System PVC-C PVC-C 40 32 16 82,5 46 108 64 100 18 180 88 14 4 1379
VKDOC050E - - System PVC-C System PVC-C PVC-C 50 40 16 89 52 108 64 110 18 200 93 16 4 1761
VKDOC063E - - System PVC-C System PVC-C PVC-C 63 50 16 108 62 134 76 125 18 230 111 16 4 2741

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 F f H product.detail.attribute.H[5:1] Sp U Masa
g/szt.
VKDOC020F - - System PVC-C System PVC-C PVC-C 20 15 16 54 29 67 40 65 14 130 65 11 4 481,1
VKDOC025F - - System PVC-C System PVC-C PVC-C 25 20 16 65 34,5 85 49 75 14 150 70 13,5 4 663,1
VKDOC032F - - System PVC-C System PVC-C PVC-C 32 25 16 69,5 39 85 49 85 14 160 78 14 4 895,9
VKDOC040F - - System PVC-C System PVC-C PVC-C 40 32 16 82,5 46 108 64 100 18 180 88 14 4 1379
VKDOC050F - - System PVC-C System PVC-C PVC-C 50 40 16 89 52 108 64 110 18 200 93 16 4 1761
VKDOC063F - - System PVC-C System PVC-C PVC-C 63 50 16 108 62 134 76 125 18 230 111 16 4 2741
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
