VKRBM - ZAWÓR KULOWY REGULACYJNY DUAL BLOCK®

Zawór kulowy regulacyjny DUAL BLOCK® z długimi końcówkami PP-H SDR11 (CVDM) do zgrzewania doczołowego lub elektrooporowego
Zawór kulowy regulacyjny VKR Dual Block® to kombinacja gwarantującego pewność i bezpieczeństwo zaworu kulowego VKD z pełnym przepływem oraz funkcji precyzyjnej i powtarzalnej regulacji przepływu cieczy, która sprosta nawet najbardziej wymagającym zastosowaniom przemysłowym.

product.detail.headline.features:

  • HIPVC ergonomic multifunctional handle with position indicator and tool to adjust the ball seat carrier
  • Flow direction and opening angle indication plate with graduated scale with 5° detail for clear and accurate readings
  • 90° operating angle that permits the use of standard quarter turn actuators
  • The patented ball design provides linear flow adjustment throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops
  • Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion
Wróć do listy produktów
Valvola di regolazione a sfera DUAL BLOCK® VKRBM DN 10:50 in PP-H
VKRBM - ZAWÓR KULOWY REGULACYJNY DUAL BLOCK®
Valvola di regolazione a sfera DUAL BLOCK® VKRBM DN 10:50 in PP-H
VKRBM - ZAWÓR KULOWY REGULACYJNY DUAL BLOCK®

EPDM

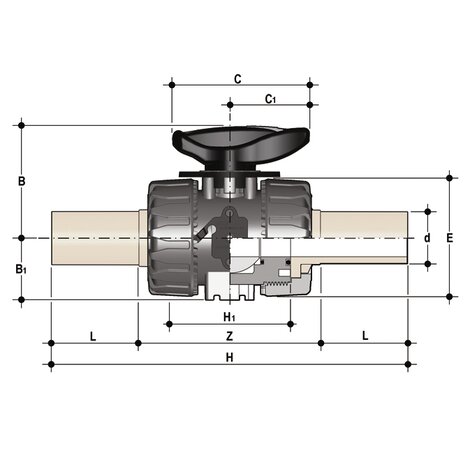

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKRBM020E - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025E - - System PP-H System PP-H PP-H 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032E - - System PP-H System PP-H PP-H 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040E - - System PP-H System PP-H PP-H 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050E - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063E - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKRBM020E0LF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025E0LF - - System PP-H System PP-H PP-H 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032E0LF - - System PP-H System PP-H PP-H 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040E0LF - - System PP-H System PP-H PP-H 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050E0LF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063E0LF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKRBM020E0SF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025E0SF - - System PP-H System PP-H PP-H 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032E0SF - - System PP-H System PP-H PP-H 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040E0SF - - System PP-H System PP-H PP-H 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050E0SF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063E0SF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKRBM020F - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025F - - System PP-H System PP-H PP-H 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032F - - System PP-H System PP-H PP-H 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040F - - System PP-H System PP-H PP-H 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050F - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063F - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKRBM020F0LF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025F0LF - - System PP-H System PP-H PP-H 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032F0LF - - System PP-H System PP-H PP-H 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040F0LF - - System PP-H System PP-H PP-H 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050F0LF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063F0LF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
g/szt.
VKRBM020F0SF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025F0SF - - System PP-H System PP-H PP-H 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032F0SF - - System PP-H System PP-H PP-H 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040F0SF - - System PP-H System PP-H PP-H 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050F0SF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063F0SF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 300 111 65,5 161 1607
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double connection key to ball
  • Integrated bracket for valve anchoring
  • Ball seat carrier can be adjusted using the Easytorque adjustment kit
  • Actuation option: version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
  • Valve suitable for carrying fluids that are clean and free of suspended particles
