VRDV - ZAWÓR ZWROTNY KĄTOWY
Zawór zwrotny kątowy z końcówkami nyplowymi do wklejenia, metryczny
VR to zawór zwrotny kątowy z tłokiem z tworzywa, który pozwala na przepływ medium tylko w jednym kierunku.

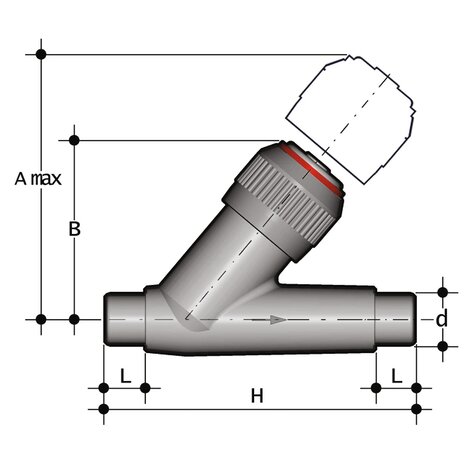

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | H | L | Fig. | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRDV016E | - | - | System PVC-U | System PVC-U | PVC-U | 16 | 10 | 16 | 125 | 72 | 114 | 14 | A | 125 |
| VRDV020E | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 16 | 125 | 72 | 124 | 16 | A | 135 |
| VRDV025E | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 16 | 145 | 84 | 144 | 19 | A | 225 |
| VRDV032E | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 16 | 165 | 95 | 154 | 22 | A | 360 |
| VRDV040E | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 16 | 190 | 111 | 174 | 26 | A | 590 |
| VRDV050E | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 16 | 210 | 120 | 194 | 31 | A | 835 |
| VRDV063E | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 16 | 240 | 139 | 224 | 38 | A | 1420 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
