VROM - ZAWÓR ZWROTNY KĄTOWY
Zawór zwrotny kątowy z kołnierzami PP z rdzeniem stalowym PP/FRP EN/ISO/DIN PN10/16

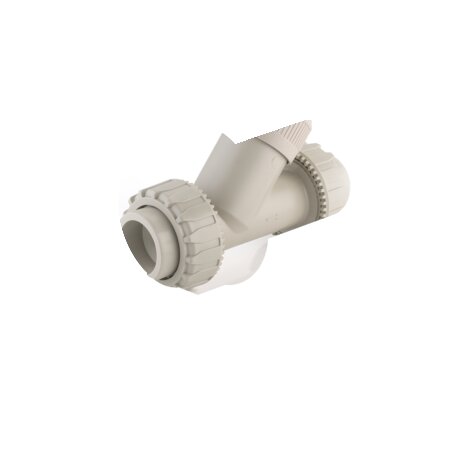

The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

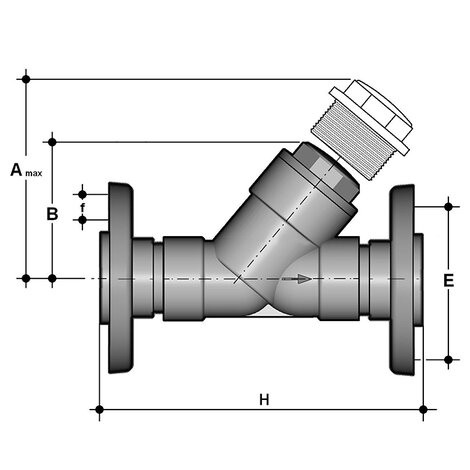

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | F | f | H | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROM075E | - | - | System PP-H | System PP-H | PP-H | 75 | 65 | 6 | 300 | 179 | 145 | 18 | 356 | 5990 |
| VROM090E | - | - | System PP-H | System PP-H | PP-H | 90 | 80 | 4 | 325 | 192 | 160 | 18 | 404 | 7230 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | F | f | H | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROM075F | - | - | System PP-H | System PP-H | PP-H | 75 | 65 | 6 | 300 | 179 | 145 | 18 | 356 | 5990 |
| VROM090F | - | - | System PP-H | System PP-H | PP-H | 90 | 80 | 4 | 325 | 192 | 160 | 18 | 404 | 7230 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
