VRUIM - ZAWÓR ZWROTNY KĄTOWY

Zawór zwrotny kątowy ze śrubunkami z końcówkami mufowymi do zgrzewania
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
Wróć do listy produktów
Valvola di ritegno VRUIM DN 15:50 in PP-H
VRUIM - ZAWÓR ZWROTNY KĄTOWY
Valvola di ritegno VRUIM DN 15:50 in PP-H
VRUIM - ZAWÓR ZWROTNY KĄTOWY

EPDM

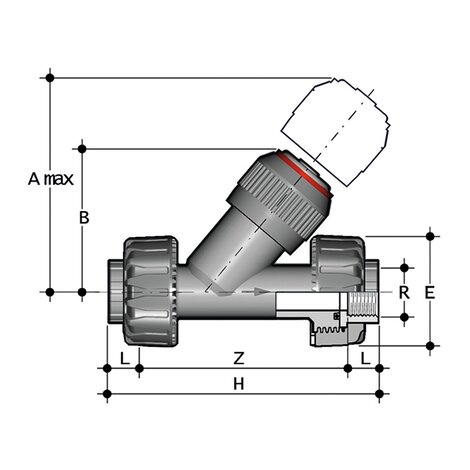

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amax B E H Z Masa
g/szt.
VRUIM020E - - System PP-H System PP-H PP-H 20 15 10 125 71 55 138 109 165
VRUIM025E - - System PP-H System PP-H PP-H 25 20 10 145 83 66 157 125 227
VRUIM032E - - System PP-H System PP-H PP-H 32 25 10 165 94 74 179 143 380
VRUIM040E - - System PP-H System PP-H PP-H 40 32 10 190 109 86 205 164 645
VRUIM050E - - System PP-H System PP-H PP-H 50 40 10 210 119 99 244 197 915
VRUIM063E - - System PP-H System PP-H PP-H 63 50 10 240 143 120 294 239 1555

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amax B E H Z Masa
g/szt.
VRUIM020F - - System PP-H System PP-H PP-H 20 15 10 125 71 55 138 109 165
VRUIM025F - - System PP-H System PP-H PP-H 25 20 10 145 83 66 157 125 227
VRUIM032F - - System PP-H System PP-H PP-H 32 25 10 165 94 74 179 143 380
VRUIM040F - - System PP-H System PP-H PP-H 40 32 10 190 109 86 205 164 645
VRUIM050F - - System PP-H System PP-H PP-H 50 40 10 210 119 99 244 197 915
VRUIM063F - - System PP-H System PP-H PP-H 63 50 10 240 143 120 294 239 1555
  • Connection system for weld, threaded and flanged joints
  • No metal parts in contact with the fluid
  • Piston with counterweight able to work with high intensity fluid
  • Limited pressure drop. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
