VRUOAM - ZAWÓR ZWROTNY KĄTOWY
Zawór zwrotny kątowy ze śrubunkami oraz kołnierzami ANSI B16.5 cl.150 #FF
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

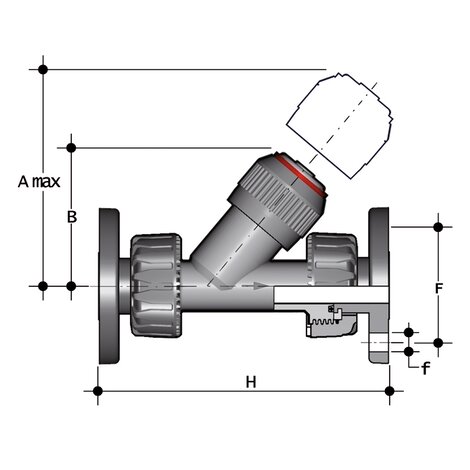

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | product.detail.attribute.Size | DN | PN | Amax | B | F | f | H | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUOAM012E | - | - | System PP-H | System PP-H | PP-H | 1/2" | 15 | 10 | 125 | 72 | 60 | 16 | 175 | 265 |
| VRUOAM034E | - | - | System PP-H | System PP-H | PP-H | 3/4" | 20 | 10 | 145 | 84 | 70 | 16 | 214 | 327 |
| VRUOAM100E | - | - | System PP-H | System PP-H | PP-H | 1" | 25 | 10 | 165 | 95 | 79 | 16 | 237 | 480 |
| VRUOAM114E | - | - | System PP-H | System PP-H | PP-H | 1"1/4 | 32 | 10 | 190 | 111 | 89 | 16 | 253 | 795 |
| VRUOAM112E | - | - | System PP-H | System PP-H | PP-H | 1"1/2 | 40 | 10 | 210 | 120 | 98 | 16 | 289 | 1065 |
| VRUOAM200E | - | - | System PP-H | System PP-H | PP-H | 2" | 50 | 10 | 240 | 139 | 121 | 19 | 333 | 1705 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | product.detail.attribute.Size | DN | PN | Amax | B | F | f | H | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUOAM012F | - | - | System PP-H | System PP-H | PP-H | 1/2" | 15 | 10 | 125 | 72 | 60 | 16 | 175 | 265 |
| VRUOAM034F | - | - | System PP-H | System PP-H | PP-H | 3/4" | 20 | 10 | 145 | 84 | 70 | 16 | 214 | 327 |
| VRUOAM100F | - | - | System PP-H | System PP-H | PP-H | 1" | 25 | 10 | 165 | 95 | 79 | 16 | 237 | 480 |
| VRUOAM114F | - | - | System PP-H | System PP-H | PP-H | 1"1/4 | 32 | 10 | 190 | 111 | 89 | 16 | 253 | 795 |
| VRUOAM112F | - | - | System PP-H | System PP-H | PP-H | 1"1/2 | 40 | 10 | 210 | 120 | 98 | 16 | 289 | 1065 |
| VRUOAM200F | - | - | System PP-H | System PP-H | PP-H | 2" | 50 | 10 | 240 | 139 | 121 | 19 | 333 | 1705 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
