Zawory kulowe z PE-HD, ¼ obrotu, do bocznego nawiercania pod ciśnieniem

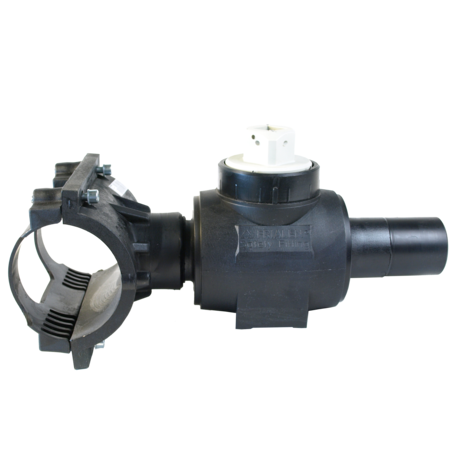

Zwarta konstrukcja z PE-HD. Zmontowana fabrycznie kombinacja odejścia siodłowego i zaworu kulowego FRIALEN® z końcówką do zgrzewania do niewymagającej wiele miejsca i taniej zabudowy w położeniu poziomym, szczególnie przy włączeniach. Bezwyciekowe i bezwiórowe nawiercanie rurociągów pod ciśnieniem do 10 bar (gaz) lub do 16 bar (woda) przy użyciu dostępnych w handlu urządzeń do nawiercania (zalecamy urządzenia firmy Hütz & Baumgarten). Niezatopiony w tworzywie element grzewczy, w celu optymalizacji przekazywania ciepła.
Prosimy o zapoznanie się z krajowymi wymaganiami dotyczącymi komponentów mających kontakt z wodą pitną. Zalecamy KHW z uszczelnieniem EPDM do zastoswań wodnych.
PE 100 SDR 11
Maximum working pressure 10 bar (gas)

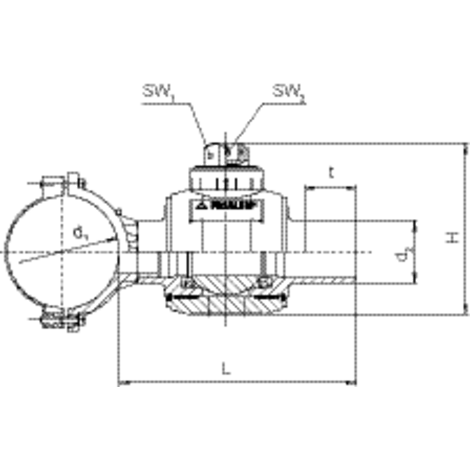

| Indeks | d1 | d2 | Opak. | Paleta | L | t | sw1 | sw2 | H | Nawierc. Ø da |
Masa kg/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 615427 | 110 | 63 | 6 | 48 | 330 | 110 | 50 x 50 | 25 | 180 | 42 | 3,080 |
| 615428 | 110 | 90 | 4 | 32 | 335 | 90 | 50 x 50 | 25 | 240 | 60 | 4,670 |
| 615431 | 125 | 90 | 4 | 32 | 335 | 90 | 50 x 50 | 25 | 240 | 60 | 4,790 |
| 615433 | 160 | 63 | 4 | 32 | 330 | 110 | 50 x 50 | 25 | 180 | 42 | 3,300 |
| 615434 | 160 | 90 | 4 | 32 | 335 | 90 | 50 x 50 | 25 | 240 | 60 | 4,970 |
| 615437 | 180 | 90 | 4 | 32 | 335 | 90 | 50 x 50 | 25 | 240 | 60 | 4,990 |
| 615440 | 225 | 90 | 4 | 32 | 335 | 90 | 50 x 50 | 25 | 240 | 60 | 5,000 |
FRIALEN-Tapping Ball Valves can be used for pipes of SDR stages 11 to 17.6. DVGW-Registration Nos. AKHP: DG-8631AU2252 and DG-8631AU2253
For tapping of pipes under pressure we recommend tapping equipment of Hütz + Baumgarten.
Areas of Application
The FRIALEN-Tapping Ball Valve, completely made from HD-PE, makes it possible to tap sideways into an operational HD-PE mains under gas and water pressure – without any escape of gas or water.
Assembly Instructions
The fusion of FRIALEN Tapping Ball Valves to the HD-PE main takes place by FRIALEN fusing – leakproof and longitudinally strong. The pipe and the saddle have to be prepared (oxide layer removal/cleaning) in accordance with the general installation instructions (see „Assembly Instructions“ for FRIALEN Safety Fittings for house connections and distribution pipes up to d 225).
Tapping of the HD-PE pipe under operating pressure
For this we recommend the tapping equipment of Hütz + Baumgarten. It is clamped onto the exposed fusion end of the ball valve. The tapping of the HD-PE pipe takes place through the opened ball valve and is leakage free.
Actuating the shut-off valve
By the telescopic actuating installation kit BS from the valve cover.
Good reasons for using the FRIALEN-Tapping Ball Valves:
Fusioning and tapping under pressure saves time-consuming and expensive shut-offs and emergency supply during the integration
Installation of mains and service lines takes place on one level and thus affords advantages in the planning stages
Construction and connecting works are reduced to a minimum
The ball valve can be used as a shut-off device afterwards
Additional barcode for tracing back the underground fitting (Traceability-Coding)
